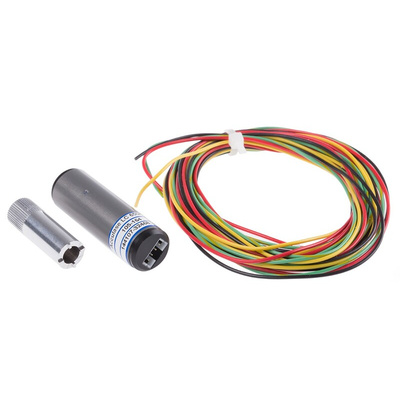

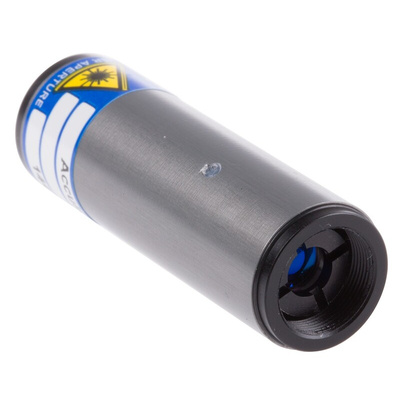

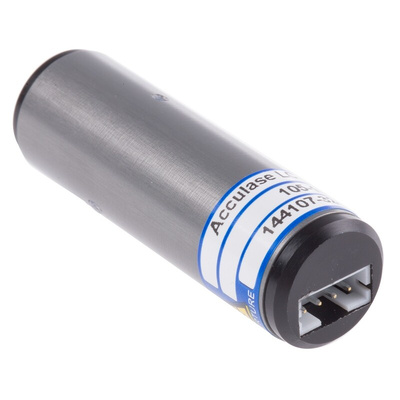

Global Laser ACCULASE-LC-650-5-S Laser Module, 650nm 5mW, Modulating Dot pattern, Linear control +3.3 → +6 V

Номер производителя: ACCULASE-LC-650-5-S Производитель: Global Laser
Цена за шт.
28593.00 руб. *

Срок поставки: 4-6 недель


* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

Acculase LC

The Acculase range of laser modules from Global Laser offer high optical and electrical performance. They come in a range of different wavelengths and strengths, with various lenses. The Acculase lasers are precision set during the manufacturing process to ensure an accurate beam alignment with the outer casing. This accuracy enables you to get your laser up-and-running quickly and easily, with immediate laser alignment.
The LC range offers control of the output intensity linearly through the application of a voltage between 0 V and 1 V. The output intensity replicates any arbitrary signal you wish to apply within the limits of the laser maximum rise and fall time. The input is also clamped. Therefore, if you apply more than 1 V, the output does not increase more than 5% above the factory set limit.
Suitable applications for the Acculase laser modules include; graphics displays, alignment systems, medical applications and telemetry.

Control the output intensity linearly by applying a voltage of between 0 to 1v, to the control input
High pointing accuracy < 1mRad
Fitted lens provides circular/elliptical beam
Linear Control internal driver board
Electrically isolated case
Reverse polarity protected

Laser Modules, Global Laser Warning
  • These laser diode modules are OEM devices and conform to the emission criteria of BS (EN) 60825. It is recommended that this standard and the Data Sheet are read before these lasers are used. Serious eye damage may result if any laser of 1mW or above is pointed directly at the eye.

Техническая спецификация
pdfPremier & Acculase Range Data Sheet
pdfPremier & Acculase Range User Guide

Выходная оптическая мощность:
Диапазон напряжения питания:
+3.3 → +6 В
Длина волны лазера:
Класс лазера:
Максимальное напряжение питания:
Минимальное напряжение питания:
15 (диаметр) x 47.5мм
Структура выбросов:
Тип лазера:
Тип управления:
Цвет лазера:
