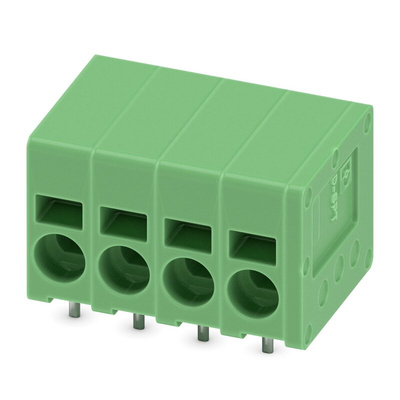

1990999, Phoenix Contact SPT 2.5/4-H-5.0 Series PCB Terminal Block, 4-Contact, 5mm Pitch, Through Hole Mount, 1-Row, Spring Cage

Phoenix Contact PCB Terminal Strip, 24A Current Rating, 4kV Rated Surge Voltage - SPT 2.5/4-H-5.0 - 1990999

Looking for a trusty messenger to carry signals to and from your PCB? Go for this terminal strip from Phoenix Contact. It provides a safe replacement for a direct wire connection system, housing the cables to prevent any shocks from contact with bare hands. The strip's PA housing takes the strain of wear and heat without losing performance, so it's an ideal choice for harsh environments.
This piece of kit has a 24A current rating, making it suitable for high-power applications. To improve safety, it resists surge voltages up to 4kV, reducing the risk of arcs and fire outbreaks. Its copper alloy contacts ensure a reliable connection and hot-dip tin surface plating keeps them free from rust, so you get long-term service. The unit is mounted via wave soldering to achieve a secure link that stays put even in vibrating systems. Components like this are commonly found in consumer electronics.

• Wide operating temperature range between -40°C and +100°C for use in challenging settings
• RoHS certification shows that it only contains minimal amounts of hazardous substances
• UL 94-V0 rating indicates that it stops burning in 10 seconds or less in the event of a fire

Approvals

UL, CUL

Phoenix Contact COMBICON 5.0mm PCB Terminal Blocks

Spring-cage PCB termination block SPT 2,5/ 4-H-5,0
