FLUKE-771, Fluke 771 Clamp Meter, 100mA dc With UKAS Calibration

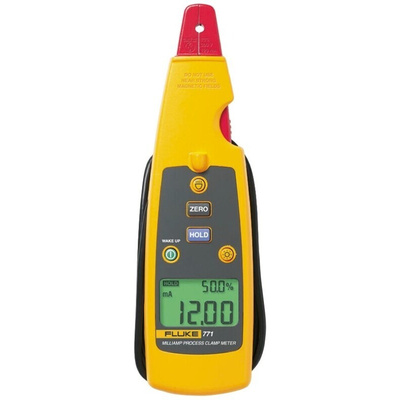

Fluke 771 mA Process Clamp Meter

Need more hours in your day? Save time by not breaking the loop on 4-20 mA signal measurements with the Fluke 771 Process Clamp Meter.

Are you spending time:

•Taking mA measurements by removing a wire and breaking the loop
•Calling the control room to isolate a loop
•Testing analog input/output on a console
•Troubleshooting devices with mA inputs and outputs
•Repairing intermittent or erratic 4-20 mA loops
•Going back to the shop to get extra tools

If you need more time in your busy day take a good look at the Fluke 771 mA Clamp Meters. It’s designed to save you time, and money, by eliminating time wasting activities. Now you can troubleshoot and repair 4-20 mA loops without breaking the loop or bringing down the system.

Here are some specific ways the Fluke 771 clamp meters will help you:

Measure mA signals for PLC and control system analog I/O without breaking the loop
• Measures low level dc current
• Correlate process indication with real physical value

Measure output signals from transmitters without breaking the loop
• Maintain and troubleshoot process and automation equipment without breaking the loop
• No disruption to the process

Detachable clamp with extension cable
• Measurements in tight locations
• Enables measurements in difficult situations

Measurement Spotlight
• Illuminates hard to see wires in dark enclosures
• Measurement process is easier and quicker

Measure up to 99.9 mA range non-contact
• Wide range of measurements
• Measures 10 to 50 mA signals in older control systems

Automatic power off
• After 15 minutes and 2 minute automatic off for backlight and spotlight
• Saves battery life

Features

• Best in class 0.2% accuracy
• 0.01 mA resolution and sensitivity
• Measure 4 to 20 mA signals without “breaking the loop”
• Measure mA signals for PLC and control system analog I/O
• Dual backlit display with both mA measurement and percent of 4 to 20 mA span
• Measurement Spotlight illuminates hard to see wires in dark enclosures
• Detachable clamp with extension cable for measurements in tight locations
• Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
• Automatically change the 4 to 20 mA output for remote testing
• Power saving features, auto-off, backlight timeout extend battery life
• Hold function captures and displays changing measurements

Supplied with

2 AA batteries, soft carry case and user manual.

Fluke Milliamp Process Clamp Meter

The Fluke milliamp process clamp meter measures the current up to 99mA. This clamp meter saves you time by measuring 4-20 mA signals without breaking the loop or bringing down the system. You can also use it to measure output signals from transmitters without breaking the loop when maintaining and troubleshooting process and automation equipment. This saves time and avoids disruption to the process. For more convenience, the detachable clamp can be attached to the wire you're testing while you move the meter—connected by the extension cable—to a better viewing position. This is especially helpful for taking readings in tight locations. This meter contains 2 AA batteries, soft carry case and user manual.

Features and Benefits

• Best in class 0.2% accuracy
• Resolution and sensitivity is 0.01mA
• Measure mA signals for PLC and control system analogue I/O
• Dual backlit display with both, mA measurement and percent of 4mA to 20mA span
• Measurement spotlight illuminates hard to see wires in dark enclosures
• Detachable clamp with an extension cable for measurements in tight locations
• Measures 10mA to 50mA signals in older control systems using the 99.9mA range
• Automatically changes the 4mA to 20mA output for remote testing
• Power-saving features, auto –OFF and backlight timeout extend battery life
• Hold function captures and displays changing measurements

Applications

• Petrochemical industry
• Oil and gas
• Food and beverages
• Pharmaceuticals

Certifications

• IP40 rated
• EN61326-1
