RS PRO Polystyrene Film Capacitor, 160V dc, ±10%, 10pF, Through Hole, Конденсатор

0113207
Производитель: RS PRO
Цена за шт. (норма упаковки 10 шт)
710.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

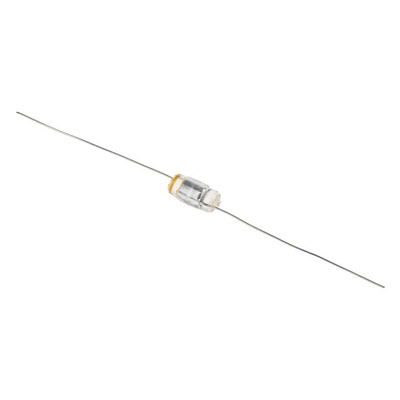

RS PRO Polystyrene Capacitor, 10 pF, 160 V DC, ±10% Tolerance, 4 mm Through Hole Diameter

Store charge in your circuits simply and effectively, with this polystyrene capacitor from RS PRO. It has a tubular shape and a particularly compact size that makes it ideal for settings where space is limited.
The component has a maximum voltage rating of 160 V DC, making it highly versatile and suited to a variety of applications. Aluminium contact plates are strong enough to handle heavy impact and they offer a good level of resistance to oxidisation and wear. This means the component has a long lifespan. You can count on it to perform reliably as the polystyrene film offers a good level of electrical insulation and low dielectric absorption. A capacitor like this one is often used in audio systems, feedback networks and digital computing circuits. It meets Restriction of Hazardous Substances (RoHS) standards, which means it contains only minimal amounts of any harmful materials.

Features and Benefits

• Capacitance of 10 pF (picofarad)
• Voltage of 160 V DC
• Diameter of 4 mm
• Lead diameter of 0.3 mm
• Length of 8 mm
• Maximum operating temperature of +85°C
• Minimum operating temperature of -40°C
• Through-hole mounting and terminal type
• Tolerance of ±10%
• Suitable for analogue computing circuit, digital computing circuit, pulse network, timing, transformer and tuned circuit applications
• Polystyrene (PET) dielectric

Техническая спецификация
pdfRS Pro Datasheet
Ведущий диаметр:
0.3мм
Диэлектрик:
Полистирол
Длина:
8мм
Ёмкость:
10пФ
Напряжение:
160V dc
Отклонение:
±10%
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-40°C
Размеры:
4 (диаметр) x 8мм
Серия:
FSC
Тип клеммы:
Сквозное отверстие
Тип монтажа:
Сквозное отверстие
