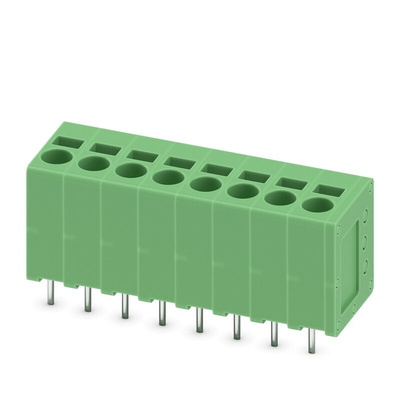

1991150, Phoenix Contact SPT 2.5/ 8-V-5.0 Series PCB Terminal Block, 8-Contact, 5mm Pitch, Through Hole Mount, 1-Row, Spring

0113301
Номер производителя: 1991150Производитель: Phoenix Contact
Цена за шт. (норма упаковки 5 шт)
1200.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Phoenix Contact COMBICON SPT 5.0mm PCB Terminal Blocks

SPT 2,5 series 5.0mm pitch through hole vertical and horizontal mounting PCB terminal blocks with screwless push-in spring cage terminals for solid or stranded wire with ferrules. For non-ferruled wires the terminal is opened using a screwdriver.
For screwdriver see stock number 803-4323
For ferrule crimping pliers see stock number 803-4405

Phoenix Contact PCB Terminal Strip, 250V Voltage Rating, 41.4 (L) x 14.4 (W) x 13.5mm (D) - SPT 2,5/ 8-V-5,0 - 1991150

Make sure your wires don't get crossed with this PCB terminal block from Phoenix Contact. The nifty device orders and terminates up to eight conductors on circuit boards to keep your applications running like clockwork. It also insulates and separates live components to prevent equipment damage and electric shocks.
Push-in spring connections let you terminate leads in a jiffy without reaching for any special tools or screws. If you're dealing with non-ferruled wires, simply pop open the component with a screwdriver. Wave soldering firmly secures the pins to your PCB to help prevent accidental disconnections and pesky downtime.
This small unit, with dimensions of 41.4 (L) x 14.4 (W) x 13.5mm (D), squeezes easily into tight spots on crowded boards. As it's made from durable PA, it's on hand to protect delicate internal wiring. You'll find terminal strips like this used in robotics systems, automated control processes and consumer electronics.

Features & Benefits

• UL 94-V0 flammability rating to help prevent the spread of fires
• IEC 60068-2-6:1995-03 compliance assures you the component passed vibration testing
• RoHS certification indicates the unit contains only trace amounts of any dangerous materials

Approvals

UL, CUL

Phoenix Contact COMBICON 5.0mm PCB Terminal Blocks

Техническая спецификация
pdfSPT 1,5/10-H-3,5 Spring-cage PCB termination block
Глубина:
13.5мм
Длина:
41.4мм
Кол-во контактов:
8
Количество рядов:
1
Концевая заделка:
Spring Cage
Материал:
Полиамид
Номинал тока:
24A
Номинальное напряжение:
250 В
Ориентация корпуса:
Прямой
Род:
Male
Серия:
SPT 2.5/ 8-V-5.0
Тип:
PCB Terminal Block
Тип монтажа:
Сквозное отверстие
Цвет:
Зеленый
Шаг:
5мм
Ширина:
14.4мм
