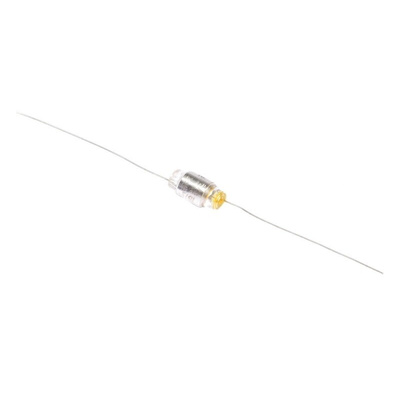

RS PRO Polystyrene Film Capacitor, 160V dc, ±2.5%, 1nF, Through Hole, Конденсатор

RS PRO Polystyrene Capacitor, 1 nF, 160 V DC, ±2.5% Tolerance, 6 mm Through Hole Diameter

Try this RS PRO polystyrene capacitor if you need to store charge in your circuits. It's only 10 mm long and 6 mm in diameter, so it's compact and well-suited for installation in places where space is restricted.


The polystyrene material ensures the product performs reliably, as it offers a good level of electrical insulation and low dielectric absorption. The aluminium contact plates mean the part will last a long time as they're resistant to oxidation and wear.


You'll find a part like this used in audio systems, feedback networks and digital computing circuits, as its 160 V DC voltage rating makes it suitable for a range of applications. This part complies with Restriction of Hazardous Substances (RoHS) standards, which means it contains only the lowest amounts of any harmful materials.

Features and Benefits

• Capacitance of 1 nF (nanofarad)


• Voltage of 160 V DC


• Diameter of 6 mm


• Lead diameter of 0.4 mm


• Length of 10 mm


• Maximum operating temperature of +85°C


• Minimum operating temperature of -40°C


• Through-hole mounting and terminal type


• Tolerance of ±2.5%


• Suitable for analogue computing circuit, digital computing circuit, pulse network, timing, transformer and tuned circuit applications


• Polystyrene (PET) dielectric

RS Pro Datasheet
