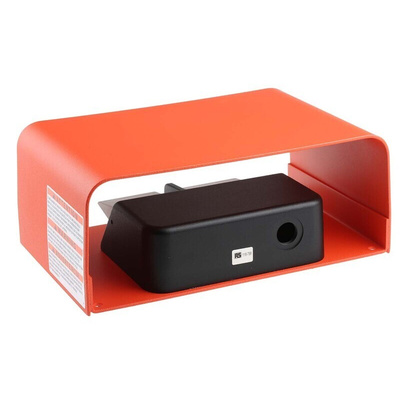

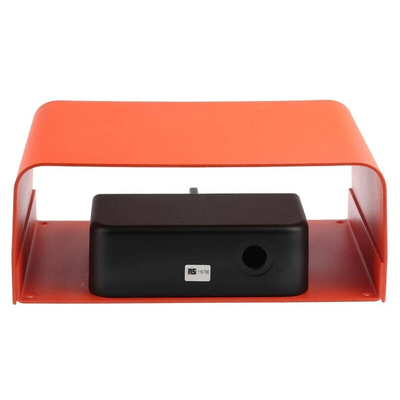

TWIN 88SH1-05, RS PRO Medium Duty Momentary Foot Switch - Aluminium Case Material, SP-CO, 16 A @ 250 V ac Contact Current, 250V, Ножной выключатель

0116798
Номер производителя: TWIN 88SH1-05Производитель: RS PRO
Цена за шт.
50226.50 руб. *

Срок поставки: 4-6 недель

+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

RS PRO General Purpose Foot Switch

RS PRO momentary medium duty foot switches which have been designed with an integral non-slip base pad or feet. They are manufactured from aluminium and have Single Pole Double Throw (SPDT) contacts. These foot controller pedals are sealed to IP68 and are ideal for industrial applications.

Foot switches are commonly used on large machinery were hand operated switches are a safety concern. RS PRO offers a range of footswitches and accessories to meet your requirements. The range has been RS approved meaning great value for money and high-quality you can rely on.

This range of foot switches includes the following types:

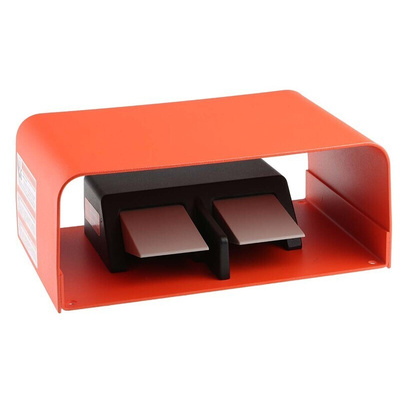

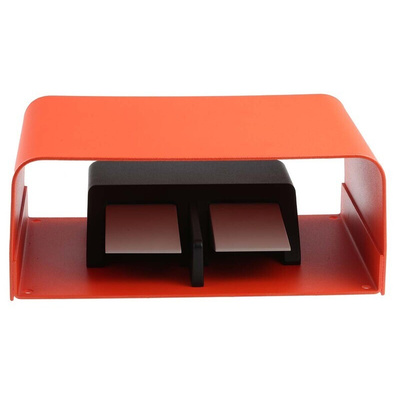

116-798 - Twin Pedal, Guarded, Momentary, SPDT
116-805 – Single, Guarded, Momentary, SPDT
116-811 - Twin Pedal, Unguarded, Momentary SPDT

Features and Benefits:

Momentary foot switch controller – range includes both single and twin pedal
Contact rating 16A 125-250Vac
Cast aluminium body and treadle
Base plate with non-skid feet
4 bolt holes – can be mounted on the floor or equipment for extra protection
Single M20 entry
Sealed to IP68 – protected from dust and water
Range comes guarded or unguarded – guard covers entire foot switch for extra safety to the user
Classic IV Foot Switch

Typical Applications

Foot switches are commonly used in applications where hands-free control is more practical or safer. They can be found on:
Industrial machinery and smaller power tools
Hospital beds
Dentist Chairs
Lamps

FAQs

What are the different types of switching options?
Switches are components that switch a circuit on or off by making contact or breaking contact, the two most common are:
Non-latching (Momentary) – this type of foot switch makes contact when you push it but breaks contact when you release it.
Latching (Maintained) – this type of foot switch needs to be pressed once for ON and again for OFF

Why would you use a footswitch?
As these switches are operated by the person’s feet, this means that their hands are free so therefore allows the individual to multitask.

Approvals

IEC 601-2-2

Standards

EN 60529

Техническая спецификация
pdfCertification
pdfRS Pro Datasheet
IP рейтинг:
IP68
Высота:
111.13мм
Длина:
158.75мм
Защитная крышка:
Да
Конфигурация контактов:
SPDT
Корпус материал:
Алюминий
Номинальное напряжение контакта AC:
250В
Номинальный ток контакта:
16 A при 250 В перем. тока
Работа выключателя:
Моментальный
Размеры:
158.75 x 279.4 x 111.13мм
Среда выключателя:
Medium Duty
Ширина:
279.4мм
