3M SWD Adhesive Cable Marker Kit, White, 2.3 → 7.9mm Cable

3M Scotchcode™ Write-on Cable Markers

A fast and convenient write on wire marking kit with a permanent marking pen, 3M's kits also provide a self-laminating protective shield over the legend.

Giving the users the freedom to create their own labels, the white vinyl film labels have pressure sensitive adhesive. Handy for identifying wire and cables it has a wide variety of applications including plumbing, electric cables, household and automotive equipment.

Features and Benefits:

• Flat stable surface to write labels
• Refillable dispenser
• Provides protective shield
• -40°C to 80°C operating temperature

Available in this series:

• 119-491 is a Write on cable marker, 25.4 x 53.98 mm
• 119-508 is a Write on cable marker, 25.4 x 127 mm
• 119-514 is a Write on cable marker, 19.05 x 34.94 mm
• 179-437 is a Write on cable marker refill pack, size B
• 179-443 is a Write on cable marker refill pack, size C

How do you use cable markers?

Specifically designed for identifying cables, cable markers are essential in conduit and bundles. They not only assist engineers and technicians with identifying wires or cables, but they also assist with health, safety and effective maintenance.

How you use a cable marker can vary, as their method of application can differ. Adhesive and self-laminating are generally used for terminated wires, they wrap around the wire with a clear protective layer. Clip and slide on labelling are generally colour coded or pre-printed with letters, numbers and symbols. The single characters can also be combined to create a legend. Some are straight, some are chevron shaped. Whilst slide on markers need to be applied pre-termination, clip-on can be applied after termination. Heat shrink, shrunk to fit the cable are flexible, durable and do not fall off. Tie on tags or markers can generally be used on larger bundles.

RS offers a large range of cable ties, markers, labels and kits.

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

3M Cable Marker Kit, 250 Labels, Pen Included - ScotchCode Series - SWD

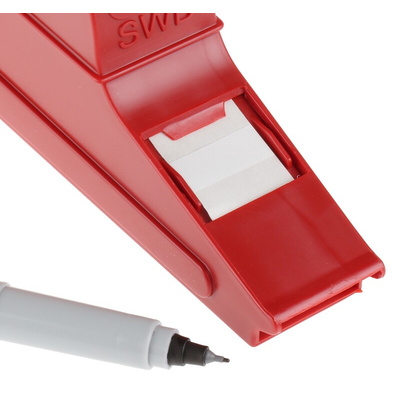

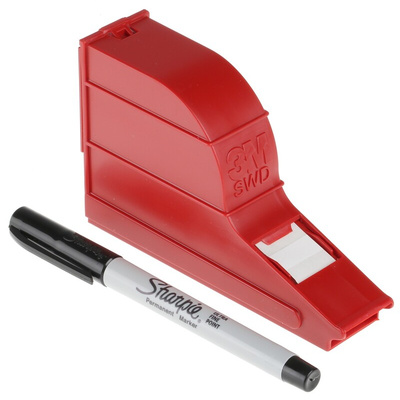

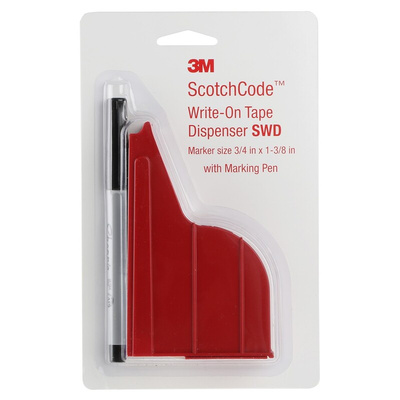

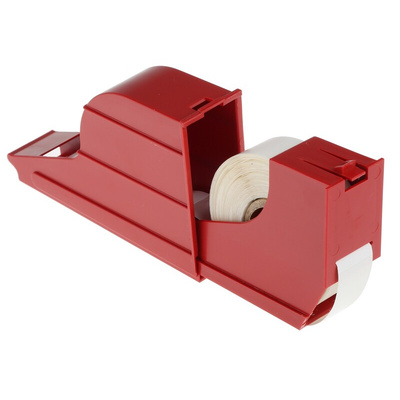

Want an all-in-one solution for identifying wires? Choose this 3M cable marker kit. It includes a roll of self-laminating labels, a dispenser and a permanent marker pen – everything you need to write clear legends for cables while out in the field. The labels have a size of 0.75 x 1.37 inches (19 x 34.9mm), making them a practical pick for wires with an outer diameter of 2.3 to 7.9mm (35 to 4AWG). With 250 per roll, you get plenty to mark up lots of cables. The roll's tensile strength of 11lbs/inch width means it's robust in demanding industrial settings, too.

Features & Benefits

• Self-lamination protects your written label from moisture and smudges
• Acrylic pressure-sensitive adhesive achieves a secure hold

Applications

• Server rooms
• Lighting rigs
• Automotive repair

What temperatures does this product handle?

This kit suits a broad operating temperature from -40°C to +80°C, so you can trust it in harsh environments.

Datasheet

Brochure - 3M ScotchCode Wire Marking and Identification System
