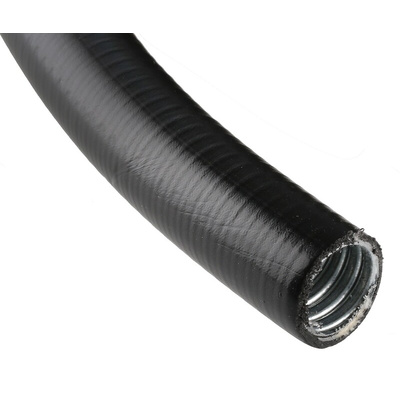

7TCA296030R0190 SPL25/10M, Adaptaflex Flexible, Liquid Tight Conduit, 25mm Nominal Diameter, Galvanised Steel, Black, Кабелепровод

Adaptaflex Conduit, PVC Coating, 110mm Minimum Bend Radius - SPL Series - 7TCA296030R0190 SPL25/10M

Run cables confidently in almost any challenging environment with this protective conduit from Adaptaflex. It's made of a helically wound galvanised steel strip that combines flexibility with impressive compression strength of 2500N/50mm and tensile strength of 1600N. This keeps it pliant enough for running leads around corners and gives it much-needed crush resistance so it will hold its own when fed into solid obstacles such as walls. A hardwearing PVC cover also makes the conduit resistant to oil and UV, so it's handy for shielding your wires from damage, whether used outdoors or in specialised applications in indoor settings.

Features & Benefits

• Broad operating temperature from -20°C to +105°C, so handy in harsh environments
• Flame-retardant, so won't contribute to the spread of flames in case of a fire
• Robust when in contact with chemicals, as well as oils, acids and petroleum

Applications

• Construction industry
• Electrical installations
• Data centres
• Marine applications

Does this conduit come with an IP rating?

When you team it with a compatible sealed brassed fitting, such as a swivel fitting (123-800), the assembly has an IP67 rating. This means it's dust and waterproof and withstands being submerged in up to 1m of liquid for up to 30 minutes.

liquid tight covered steel flexible systems

Standard Tolerances on Length Quantity

Control Cabinet Solutions

0123743_Catalogue_en

Datasheet - SPL25/10M
