7TCA296030R0215 SPL25/M25/M, Adaptaflex Swivel, Conduit Fitting, 25mm Nominal Size, M25, Brass, Silver

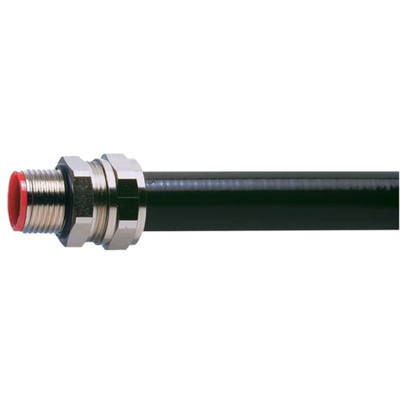

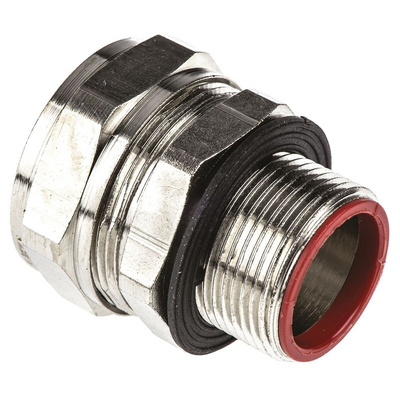

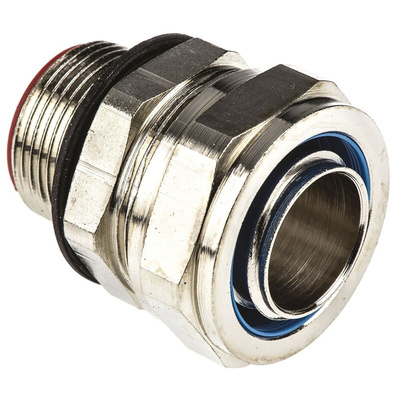

Adaptaflex Conduit Fitting, Swivel Type, M25 Thread - SPL Series - 7TCA296030R0215 SPL25/M25/M

Going around in circles chasing a secure connection between your cable conduits? Get this swivel-fit conduit fitting from Adaptaflex on the case. It pivots independently from the conduit, boosting flexibility and control during installation. At the same time, its sturdy housing helps protect and route electrical cables and wiring. As it's made from highly conductive brass, it keeps electricity flowing smoothly. This connector resists corrosion too, thanks to a nickel-plated finish that strengthens it against damage from chemicals and solvents.

Features & Benefits

• Inner diameter of 17.6mm means it fits neatly into compact wiring setups
• Operates reliably in extreme conditions, thanks to a temperature range from -45°C to +250°C
• Insulated at one end to protect your cables from the elements, indoors or out

Applications

• Lighting systems
• Telecommunications industry
• Construction sites

How much does this conduit fitting weigh?

This swivel fitting only weighs 97g, so it puts minimal strain on your electrical installation.

What thread size fits with this conduit fitting?

This fitting is compatible with round conduits with an M25 thread size.
