18-025-003, Norgren Bracket for P1H, Кронштейн

IMI Norgren Wall Mount Bracket And Panel Nut Tool, 63mm Length, 39mm Width - R07 Series - 18-025-003

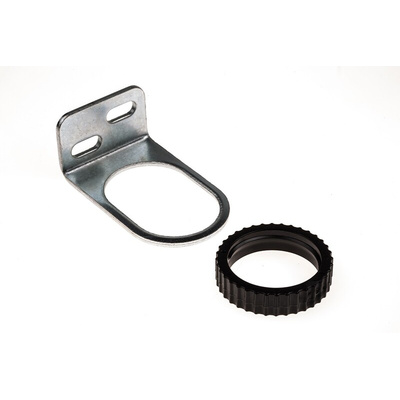

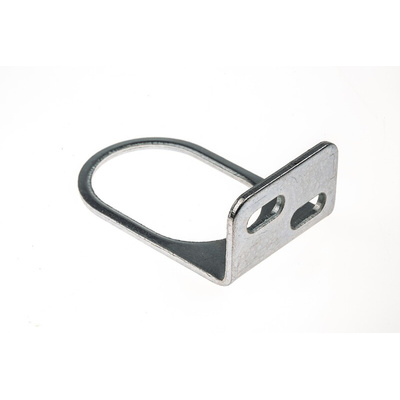

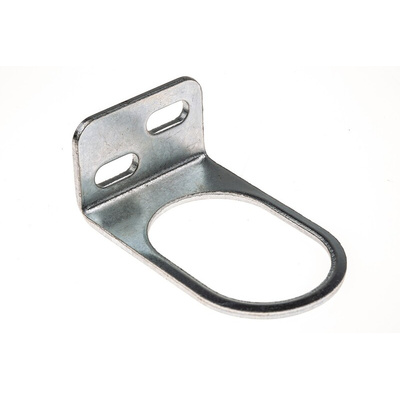

For secure and vibration-proof installation of your filter, regulator and lubricator (FRL) unit, choose this wall mount bracket kit from IMI Norgren. The set is designed for FRLs in the P1H series, and it includes a metal bracket and a plastic panel nut. The bracket is L-shaped to provide spacing between the unit and the wall. The panel nut holds the bracket in place during operation to ensure stability in vibrating systems. This mounting kit is an essential component for the complete installation of FRL units in industrial environments.

Features & Benefits

• Space-saving option with compact dimensions of 63 (length) x 26 (height) x 39mm (width)
• Light weight of 51g so it's easy to handle and won't put a strain on the wall or panel
• Easy, tool-free installation saves time and effort

Applications

• Food packaging and processing facilities
• Marine industry
• Heating furnaces

How do I mount this bracket?

First, remove the adjusting knob from the FRL unit. Next, fit the device's head into the bracket's circular hole, place the panel nut over it and replace the knob. You can then screw it onto a wall surface through the mounting holes on the bracket.
