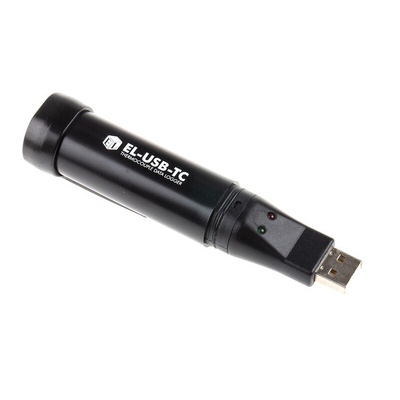

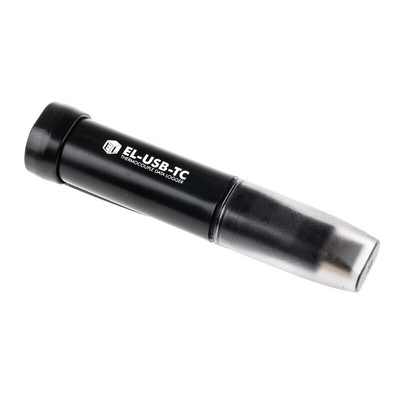

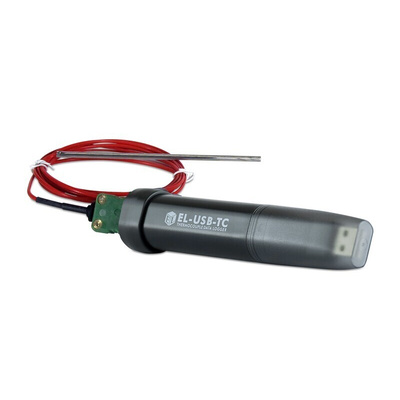

Lascar EL-USB-TC Data Logger for Temperature Measurement, Логгер

Lascar Data Loggers

The Lascar EL-USB-TC standalone data logger measures and stores over 32,000 temperature readings from a J, K or T-type thermocouple at a resolution of 0.5°C (1°F). It is supplied with a K-type thermocouple, capable of measuring between 0°C and 200°C (32°F to 392°F). The application will determine which probe is most suitable based on temperature range, accuracy, form and price. The user can easily set up the logger and view the downloaded data by plugging the data logger into a PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for a detailed analysis.

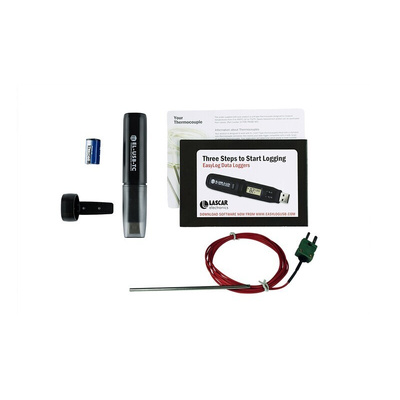

Supplied with
1/2 AA battery, K-type thermocouple probe and wall mount clip

Features and Benefits

The measurement ranges between -200°C and 1350°C
Compatible with K, J and T type thermocouples with miniature thermocouple plug connection
Temperature measurement accuracy is ±1°C
Logging rates between 1 second and 12 hours
Number of readings per channel is 32510
Immediate and delayed logging start
User-programmable alarm thresholds for both temperature and humidity
Status indication via red/green LEDs
Battery life is up to 2 years
Supplied with a 1/2AA lithium metal battery
Data logging software compatible with Windows 2000, XP and Vista

Applications

Food and drinks
Building and site monitoring
Oven monitoring
Dry ice shipments

Datasheet

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

EL-USB-TC - Quick Start Guide

Thermocouple Probes Datasheet

Lithium Battery Test Document
