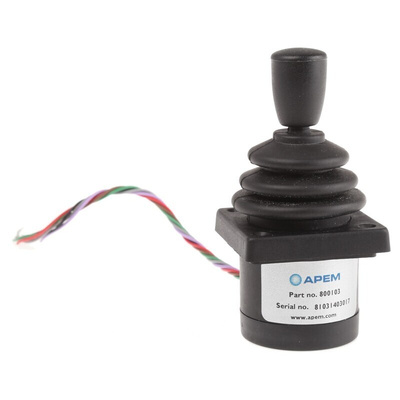

8BE1RE6549, APEM 2-Axis Joystick Switch Conical, Progressive, IP65 125V ac, Джойстик-переключатель

Rugged Switch Joystick

Rugged ungated switch joysticks suitable for industrial applications up to 1A. These joysticks have a 5 mm stainless steel shaft with a neoprene sealing gaiter and an operating deflection ±18º. The panel cut outs for these joysticks is Ø 41 mm. These joysticksare supplied with 150 mm of cable harness and instructions.

Product Application Information

These rugged switch joysticks are suitable for use in industrial applications up to 1A. Typical applications include vehicle and crane controls

Switching and Positions

This joystick is dual axis giving you the control of North, South, East and West movement. It has a round limiter allowing you to move the joystick in one direction then without moving back to central position, move in a perpendicular direction. For example, the joystick can be moved to the north position for forward movement then immediately moved to the East position for right movement. Only one direction is active at a time. This joystick is supplied single pole with dual axis meaning it has 1 switch in each of the 4 positions.

Movement and Feel

It is supplied sprung to centre and the conical handle gives a secure, comfortable feel in the hand giving precise control.

Handle Material

The handle is made from Nylon giving durability and comes with a sparked matt black finish.
