C1350ALGAC, Arcolectric (Bulgin) Ltd DPST, On-Off Rocker Switch Panel Mount, Клавишный переключатель

Splashproof Rocker Switches

A range of illuminated and non-illuminated double pole rocker switches designed for panel mounting. These high inrush switches are AC mains rated with a 150 A surge capability. With simple snap-in panel retention, these rocker switches are easy to install. Featuring an ergonomic Softline actuator and an IP40 splash resistant cover, ideal for environments where exposure to moisture is a possibility. The latching on-off switches are available with a black body and a choice of red or green illumination depending on application and design requirements. Suitable for maintenance and repair of equipment and machinery or new installations.

Features and Benefits

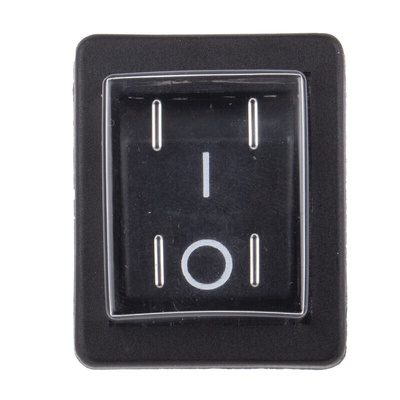

• I/O markings
• An option of red or green illumination
• Clear protective splash resistant front cover
• Ergonomic Softline actuator
• Silver alloy contacts
• Secure snap-in panel mounting
• Standard 30 x 22.1 mm cut out

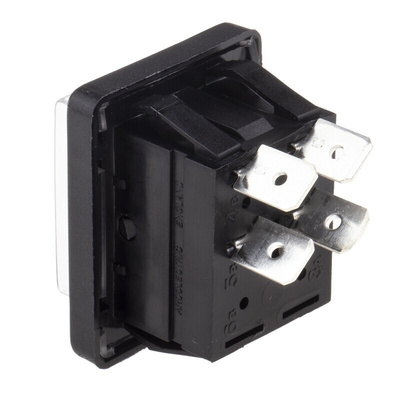

• Connection via 6.3 mm x 0.8 mm spade terminals
• DPST switch configuration

Typical applications for splash resistant rocker switches

Rocker switches are one of the most frequently used electrical switches used in the market today. Due to the simple design and easy operation, rocker switches are found in almost every industry. Some of the most common are:

• Laboratory equipment
• Power supplies and peripherals
• Portable test equipment
• Audio and video equipment
• Domestic appliances
• Security equipment

FAQ

• Are the rocker switches easy to connect?
Yes, as the rocker switches have male quick connect 0.250 in (6.35 mm) tab terminals at the rear connection is easy. Simply select the appropriate red, yellow or blue female receptacle crimp connectors according to wire size required.
• Part number 129-432 is a green illuminated rocker switch
• Part number 129-426 is a red illuminated rocker switch
• Part number 129-448 is a black non-illuminated rocker switch

Approvals

ENEC, UL recognised component, CSA certified

NEMKO L92326

Technical Information

Datasheet

Declaration of Conformity 2014/35/EU
