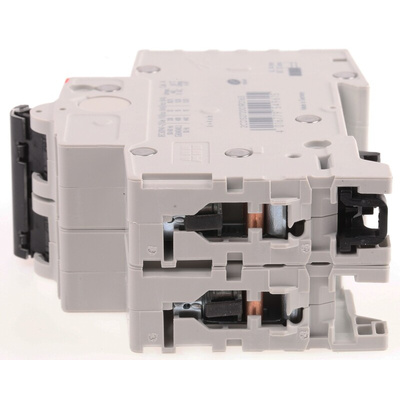

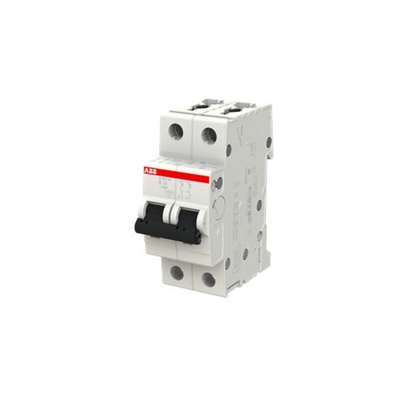

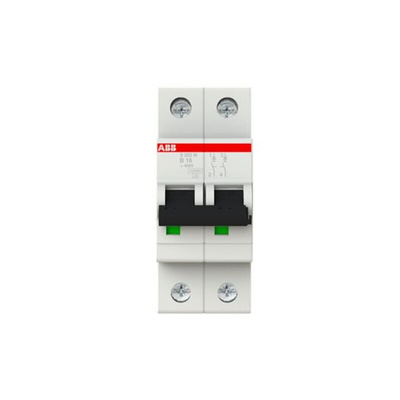

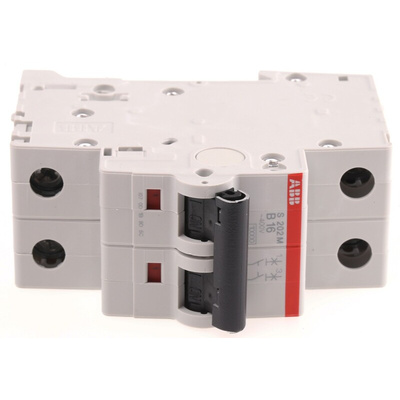

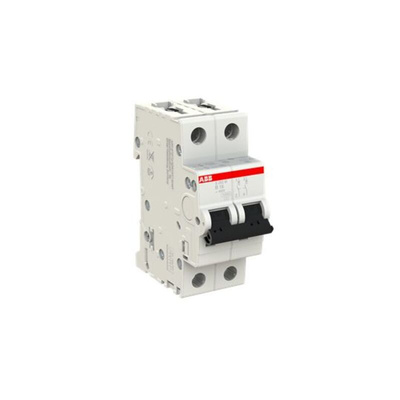

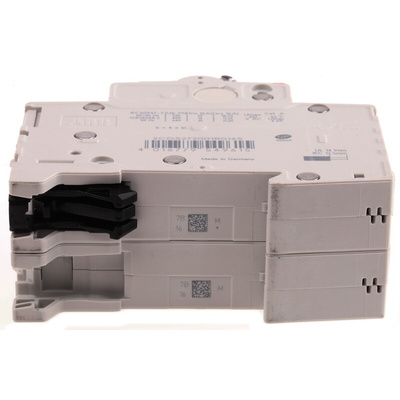

2CDS272001R0165 S202M-B16, ABB System Pro M Compact S200M MCB, 2P, 16A Curve B, 440V AC, 125V DC, 10 kA Breaking Capacity

ABB MCB, 4kV Rated Impulse-Withstand Voltage, Type B Tripping - S200M Series - 2CDS272001R0165 S202M-B16

Looking for a compact short-circuit protection solution for your electrical appliances? Choose this MCB from ABB. With dimensions of 69 (length) x 35 (width) x 88mm (height), you can install it in setups with limited space. It works by cutting the power supply to your device when a short circuit or overcurrent occurs, preventing damage and enhancing safety. As the MCB has type-B tripping characteristics, it trips instantly when it reaches 3 to 5 times its rated current. This type of unit is suitable for domestic appliances and low-voltage commercial applications.

Features & Benefits

• Thermoplastic housing for durability and insulation from electric shocks
• Resists up to 25g of mechanical shock, making it suitable for use in harsh environments
• Screw termination method is simple and needs no complex tools, saving time and effort
• Current rating of 16A for use with high-current applications

Applications

• Office spaces
• Fluorescent lighting systems

Can this MCB withstand surge voltages?

Yes, this MCB has an impulse-withstand voltage rating of 4kV, which means it can resist heavy-surge voltage up to 4kV without failure.

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.

Datasheet - 2CDS272001R0165 S202M-B16

Catalogue - Miniature Circuit-Breakers

End of life instructions S200, S200L, SZ200, SC200, S200M

Product Environmental Profile
