2CDS272001R0024 S202M-C2, ABB System Pro M Compact S200M MCB, 2P, 2A Curve C, 440V AC, 125V DC, 10 kA Breaking Capacity

ABB MCB, Type C, 2A Current Rating - S200 Series - 2CDS272001R0024 S202M-C2

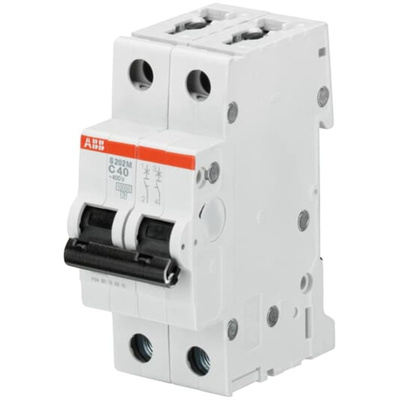

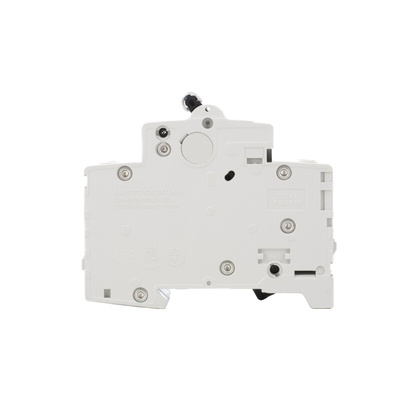

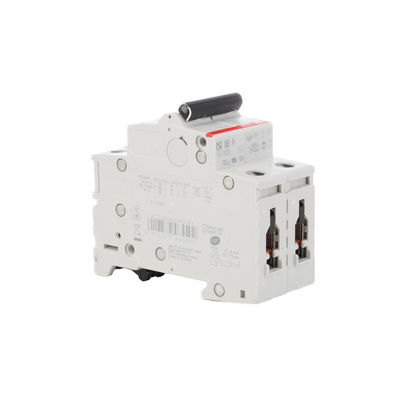

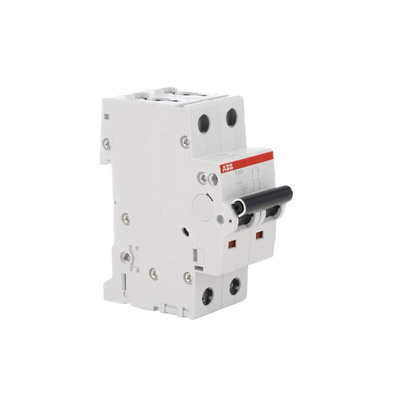

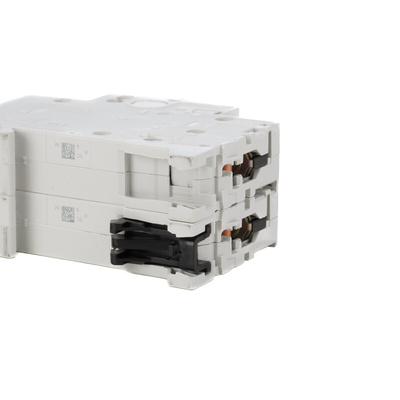

Effectively protect your electrical circuits from overcurrents and power spikes with this miniature circuit breaker from ABB. It's a 2-pole switch with a curve C tripping characteristic, which means the unit will trip when it reaches between 5 and 10 times the rated current. The device has two different tripping mechanisms – thermal and electromechanical – to safeguard your systems against both overloads and short circuits. You can connect a bottom-fitting auxiliary contact to the unit and save up to 50% mounting space.

Features & Benefits

• DIN rail mounting capability for neat and space-saving installations
• IP20 (ingress protection) rating indicates the unit is touch-proof to prevent electric shocks and enhance safety
• Wide operating temperature range from -25°C to +55°C for use in heavy-duty applications

Applications

• Electric motors
• Lighting applications
• Heating, ventilation and air conditioning systems

What does a curve C tripping characteristic mean?

A curve C tripping characteristic means the MCB will immediately trip at a rate of five to 10 times its rated current. The tripping characteristic indicates what electrical or current loads a device can handle.

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
