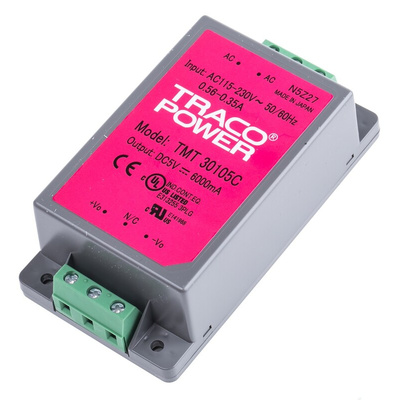

TRACOPOWER Switching Power Supply, TMT 30105C, 5V dc, 6A, 30W, 1 Output, 85 → 264 V ac, 85 → 370 V dc, Источник питания

TRACOPOWER AC/DC Power Supply

The TRACOPOWER TMT series 30W AC to DC embedded switch mode power supply has an output current rating of 6000mA at 5VDC. It has the universal input supply voltage ratings from 85VAC to 264VAC and 85VDC to 370VDC. The AC/DC power supply has chassis mounting with a screw terminal block connection.
Note:
Manufacturers’ part numbers with a 'C' suffix denote chassis mounting types
De-rate by 2.5% per °C above 50°C
MTBF to IEC 61709

Features and Benefits

Ultra compact, fully encapsulated power supply
Short circuit protection
Overload protection
Input and output isolation is 4kVAC RMS
Optional DIN-rail mounting adaptors for chassis mounting types

Applications

Commercial
Industrial electronic equipment

Certifications

IEC/EN 60950-1
UL 60950-1
CSA C22.2 No.60950-1-03
IEC/EN 60601-1
UL 60601-1
CB certified
UL approved
Safety class II
EN 55022 class B
FCC level B
