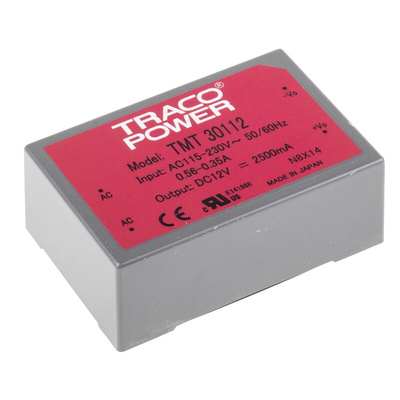

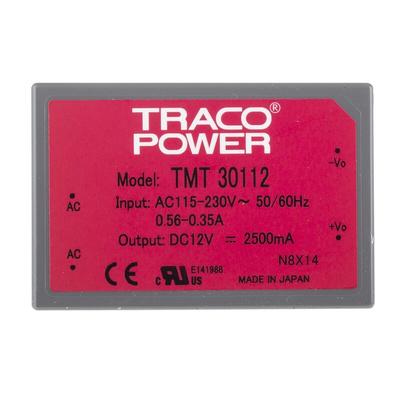

TRACOPOWER Switching Power Supply, TMT 30112, 12V dc, 2.5A, 30W, 1 Output, 85 → 264 V ac, 85 → 370 V dc, Источник питания

Traco Power Switching Power Supply, ±2% Output Voltage Accuracy, Short-Circuit Protection - TMT Series - TMT 30112

Seeking a stable power and conversion solution to get your gadgets juiced up? Go for this AC/DC switching power supply from Traco Power. It converts any universal input from 85 to 264V AC or 85 to 370V DC and delivers a tightly controlled output of 12V DC that's ideal for charging battery-supplied devices. The unit's UL 508 certification means can rest assured it's recognised as safe for use worldwide. It boasts impressive electrical specs including short-circuit breaking, isolation to 4kV and overload protection. These keep you out of harm's way and let you say so long to system downtime caused by equipment faults.

Features and Benefits

• Compact size of 76 (L) x 51 (W) x 28mm (D) makes it a practical pick for busy applications
• IEC 60601-1 certification, so approved as safe for medical use
• Versatile screw terminals make it easy to achieve robust electrical connections with lots of wire sizes

Applications

• Commercial electronics
• Motors
• Pumps

How do I mount this product?

CB certified
CSA C22.2 No.60950-1-03
EN 55022 class B
FCC level B
IEC/EN 60601-1
IEC/EN 60950-1
Safety class II
UL 60601-1
UL 60950-1
UL approved

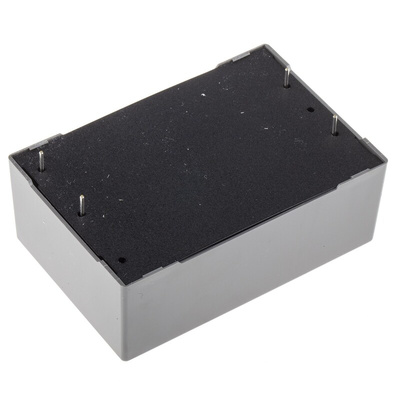

You can install this versatile product in any position on your PCB with solder pins. Alternatively, mount it onto a DIN rail using a compatible adapter (such as 132-132).
