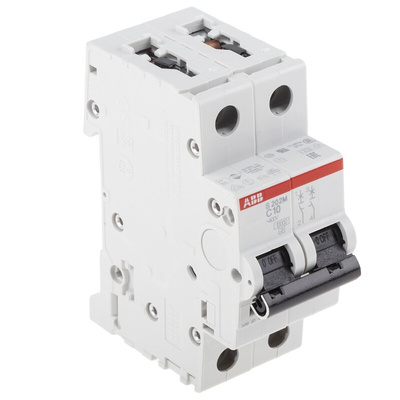

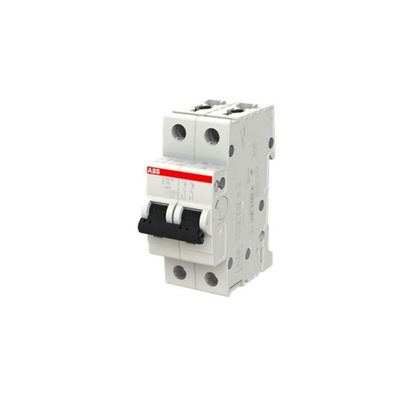

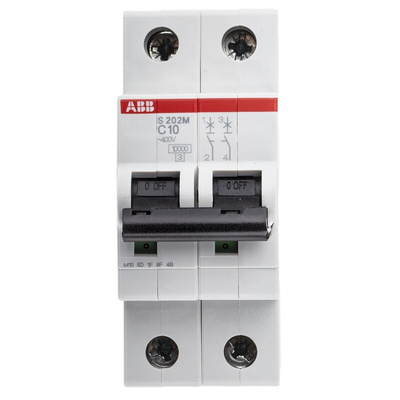

2CDS272001R0104 S202M-C10, ABB System Pro M Compact S200M MCB, 2P, 10A Curve C, 440V AC, 125V DC, 10 kA Breaking Capacity

ABB MCB, Type C, 10A Current Rating - S200 Series - 2CDS272001R0104 S202M-C10

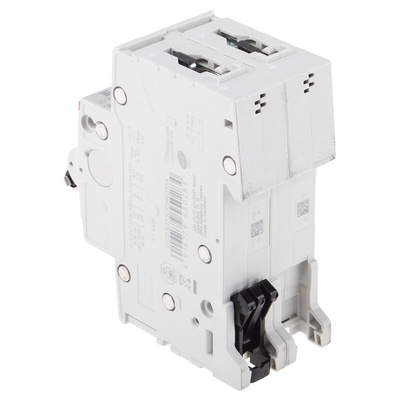

This double-pole miniature circuit breaker from ABB reliably safeguards your electrical circuits against overcurrent and voltage surges. The high-performance unit has an increased voltage rating and is suitable for use with demanding industrial and marine applications. A busbar slot in the back of the component improves visibility and makes installation straightforward. Delayed thermal tripping for overloads and electro-mechanic tripping for short circuits provide dual system protection. You can use the robust MCB in temperatures varying from -25°C to +55°C, which makes it suitable for harsh environments.

Features & Benefits

• Red or green contact position indicator clearly shows if the breaker is active or not
• IP20 (ingress protection) rating means the unit is finger-proof to protect against electric shocks
• Impact resistance for use in settings prone to jolts and vibrations
• DIN rail mounting for efficient and space-saving setup

Applications

• Construction industry
• Industrial welding equipment
• Medical imaging applications
• Electric motors

How does this MCB work?

This MCB is an electrical switch that automatically disconnects the power when it detects power spikes or short circuits. It has contacts, an operating mechanism and a tripper that work together to interrupt current flow when faults occur.

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
