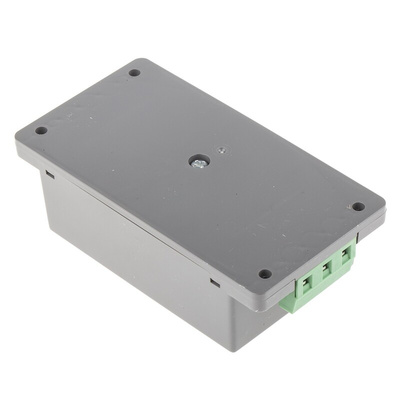

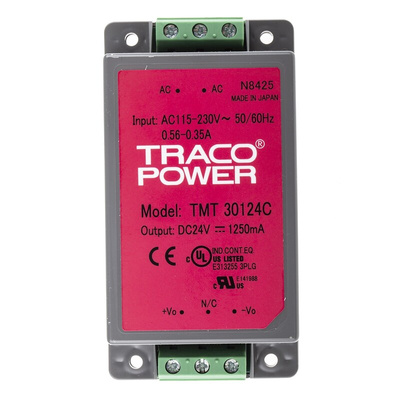

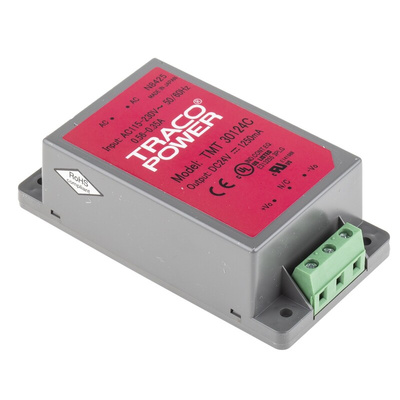

TRACOPOWER Switching Power Supply, TMT 30124C, 24V dc, 1.25A, 30W, 1 Output, 85 → 264 V ac, 85 → 370 V dc, Источник питания

Traco Power Switching Power Supply, Chassis Mounting, 180g Weight - TMT Series - TMT 30124C

When you need to keep a tight rein on voltage levels in your industrial system, connect with this switching power supply from Traco Power. It converts an AC input into a regulated 24V DC output to avoid overloading sensitive circuitry and devices. Thanks to ultra-compact dimensions of just 96 (L) x 51 (W) x 29.5mm (D), it's a space-saving choice for a crowded control cabinet. As it has a wide operating temperature range of -25°C to +50°C, you can rely on this robust piece of kit to perform without a glitch even in challenging conditions.

Features & Benefits

• Fully encapsulated plastic case keeps the internal workings safe from environmental contamination
• Screw terminal block for quick and easy electrical connection
• Chassis-mounted for hassle-free installation
• Universal input voltage range of 85 to 264V AC provides global compatibility

Applications

• Consumer electronics
• Telecommunications networks
• Medical technology

What safety features does this product have?

To protect you and your circuits in the event of a fault, this dependable device features inbuilt short-circuit and overload protection, plus an isolation voltage rating of 4kV AC.
