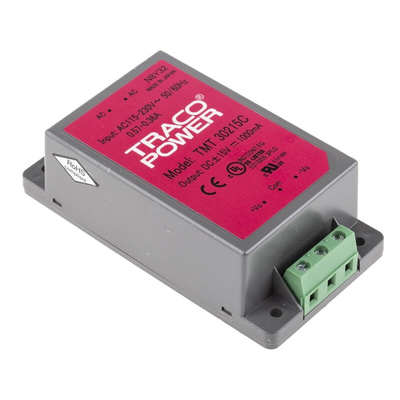

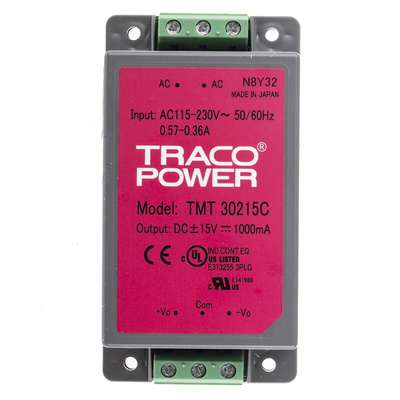

TRACOPOWER Switching Power Supply, TMT 30215C, ±15V dc, 1A, 30W, Dual Output, 85 → 264 V ac, 85 → 370 V, Источник питания

TRACOPOWER AC/DC Power Supply

The TRACOPOWER TMT series 30W dual output AC to DC embedded switch mode power supply has the output current ratings of 1000mA at 15VDC and 1000mA at -15VDC. It has the universal input supply voltage ratings from 85VAC to 264VAC and 85VDC to 370VDC. The chassis mount AC/DC power supply has screw terminal blocks.
Note:
Manufacturer’s part numbers with a 'C' suffix denote chassis mounting types
De-rate by 2.5% per °C above 50°C
MTBF to IEC 61709

Features and Benefits

Input and output isolation is 4kVAC RMS
Lead-free design
Optional DIN-rail mounting adaptors for chassis mounting
Overload protection
Short circuit protection
Ultra compact, fully encapsulated power supply

Applications

Commercial
Industrial electronic equipment

Certifications

CB certified
CSA C22.2 No.60950-1-03
EN 55022 class B
FCC level B
IEC/EN 60601-1
IEC/EN 60950-1
Safety class II
UL 508 (chassis mount version)
UL 60601-1
UL 60950-1
UL approved

Datasheet

Industrial Power Solutions Catalogue

Selection Guide
