FLUKE-77-4/EUR, Fluke 77 Handheld Digital Multimeter, 10A ac Max, 10A dc Max, 1000V ac Max, Мультиметр

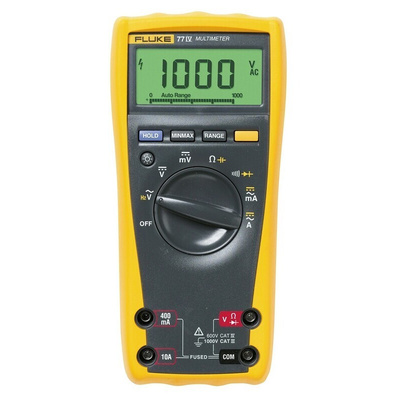

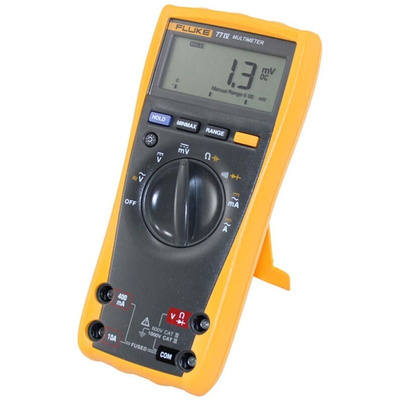

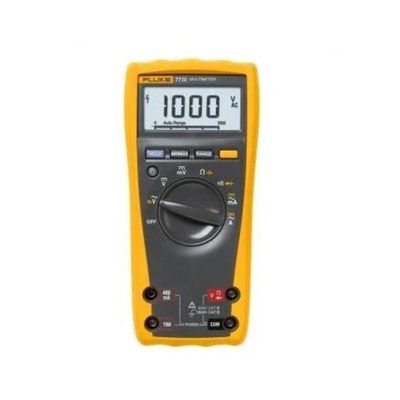

Fluke 77 IV Digital Multimeter

The Fluke 77 IV digital multimeter has the added features needed to repair most electrical and electronic problems that you may come across. With the digital multimeter easy set up it makes it simple to use and has significant improvements over the Fluke's 70 series. One of the improvements is that the 77 IV has more measuring functions allowing you to be much more accurate.
The Fluke 77 IV digital multimeter has conformance to the latest safety standards making it more reliable and trustworthy. The digital multimeter also comes with a larger display screen with a back light allowing you to view the analogue bar graphs and measurements in a dim working environment. This battery powered handheld multimeter has an average responding-rms with a 6000 count, 3 3/4 digit display and analogue bar graph. It has a wide 1000V measurement range and auto as well as manual ranging. An everyday multimeter for technicians, the Fluke 77 IV digital multimeter is for in field service, bench repair, industrial and applications where more than the basic functions simplify work

Features & Benefits

• All inputs, ranges and functions protected against overvoltage transients
• Digital display with analogue bar graph
• Display back light
• 6000 Count auto ranging and manual range selection
• Touch Hold to automatically capture stable readings
• Min/mix/average mode with min/max alert
• Automatic power down if left unused when switched on to preserve battery life
• Integrated protective holster
• EN61010-1 (safety standard) 600 V Cat III, over-voltage protection to 6 kV
• Voltage measurements up to 1000 V ac and dc, 0.1 mV resolution
• EN61010-1 (safety standard) rating 600 V cat IV/1000 V cat III

The 77IV digital multimeter measures

• AC/DC voltage & current
• Resistance
• Voltage frequency
• Diodes
• Continuity
• Capacitance

Additional Specifications

• DC Voltage Accuracy: 0.3% + 1
• DC Voltage Lowest Resolution: 0.1mV
• AC Voltage Accuracy: 2.0% + 2
• AC Voltage Lowest Resolution: 1mV
• AC Voltage Max Frequency: 1kHz
• Display Update 4/sec
• Bar Graph Segments 33
• Bar Graph Update 32/sec

Does it have auto turn off if left on?

Yes - Automatic power down if left unused when switched on to preserve battery life

Note

For Calibrated Articles - Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 90 %

Supplied with

Fluke 77 IV Digital Multimeter
(1 pair) TL75 Test leads
9V Battery (Installed)
Quick reference guide

FLUKE Multimeter, 185mm Length, 90mm Width - FLUKE-77-4/EUR

Keen to get a read on the AC/DC voltage and current levels in your electric circuits? Use this multimeter from FLUKE. A built-in backlight brightens up the screen so you won't be left in the dark when working in low-lit environments. Transient overvoltage is no match for this unit as the inputs, ranges and functions come with protection from voltage spikes. You can also use this handy device to track changes in frequency, continuity and capacitance values.

Features & Benefits

• Built-in alert for quick notification of minimum and maximum readings
• Ambient operating temperature range between -10°C and +50°C to withstand demanding conditions
• Integrated hold button to easily capture results
• Battery life of 400 hours for durable performance
• Automatic power-down helps preserve battery life

Applications

• Lighting fixtures
• Medical devices
• Equipment maintenance
• Household appliances

What's the display count resolution of this multimeter?

This multimeter has a display resolution of 6,000 counts for voltage and current measurements, so you can easily track low and high electrical values in your circuits. It has a resolution of 10,000 counts when measuring frequency and 1,000 counts for capacitance, making it a versatile choice for troubleshooting operations.
