RS PRO 25 Way Cable Mount D-sub Connector Plug, 1.27mm Pitch, Разъем

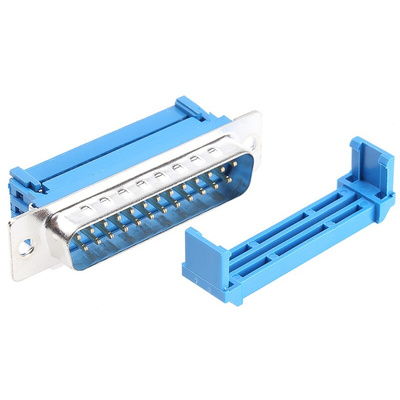

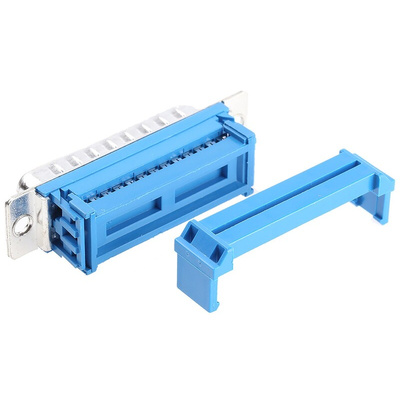

RS PRO 25-Way Cable Mounting D-Sub Connector Plug, 1.27 mm Pitch

Mount this RS PRO 25-contact connector plug to your printed circuit board (PCB) for a secure and reliable connection on your electronic device. The housing is made from steel, giving it high tensile strength that won’t dent or damage easily.
The brass contact material has high electrical conductivity with good heat resistance, so the component will transmit current or signal efficiently without overheating. The contacts are coated in a layer of tin to protect them from rust and corrosion.
This plug complies with the Restriction of Hazardous Substances (RoHS), indicating it contains no more than minimal amounts of any potentially harmful materials. As part of our trusted RS PRO range, it's been tested to ensure it meets our standards of reliability and quality.

Features and Benefits

• Brass contact material
• Tin contact plating
• Current rating of 1 A
• Dimensions of 53.05 (length) x 17.1 (width) x 12.55 mm (depth)
• Male gender
• Steel housing material
• Cable mounting type
• 25 contacts
• Pitch of 1.27 mm
• Insulation Displacement Connection (IDC) termination method
• Voltage rating of 250 V
