RS PRO, Plug Cable Mount TNC Connector, 50Ω, Solder Termination, Straight Body, Разъем

0136718
Производитель: RS PRO
Цена за шт.
3388.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

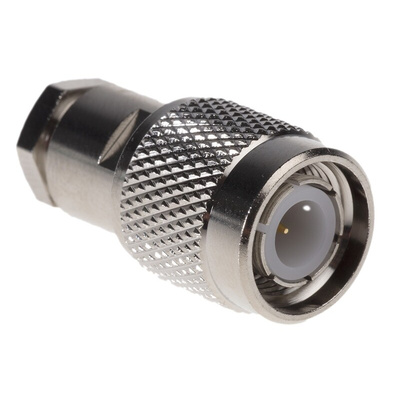

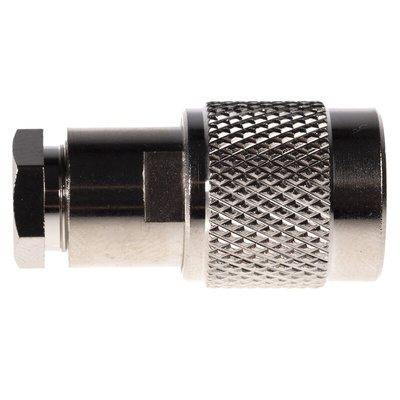

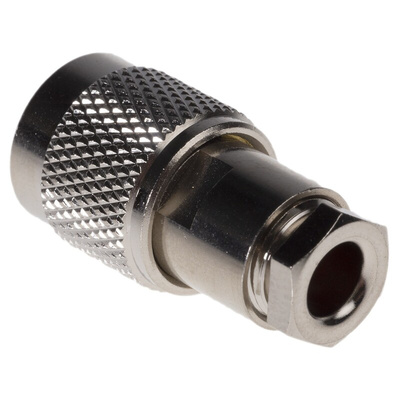

RS 50 Ohm RF Coaxial TNC Cable Clamp Plug Connectors

50 Ohm RF coaxial TNC plug connectors with a cable clamp termination. These 50 Ohm RF coax cable mount clamp plugs have a nickel plated brass body, gold plated centre contact, rubber gasket and are suitable for use with a variety of RF coaxial cable types.

RS PRO 50 Ohm FR Coaxial TNC Clamp Plug Connector

TNC Connectors (Threaded Neill-Concelman) provides a secure and reliable connection, especially when comparing to BNC Connectors. TNC have their well-established position since the 1950s, and their full dedication is to provide smooth cooperation with Coax Cable format.

We are proudly introducing our own branded RS PRO 50 Ohm Coaxial TNC Crimp Plug Connector, which has a 50 Ω impedance and shows the best performance when it operates at 0-11 GHz frequency spectrum.
Our TNC RF cable mount clamp plug has a nickel-plated brass body, gold plated centre contact, rubber gasket and is suitable for use with a variety of RF coaxial cable types.

Impressive operating temperature range of -20°C up to +80°C makes the TNC plug an ideal for harsh conditions.

Features and Benefits

  • The TNC connector is suitable for use with RG58/U Cable

  • The TNC nominal impedance of 50 Ω

  • The Connector has an impressive operating range temperature (-20°C up to +80°C)

  • Not like BNC plug Connectors, the TNC ensures no vibration is in place, making a perfect solution in vibration-intense applications

  • Excellent RF communication for up to 11 GHz

  • TNC Male Connector is practically always in stock for small and big projects

Applications

The miniature TNC series of Connectors goes through exploration for radio and wired applications and has their place in:

  • Antennas

  • Industrial

  • Wireless

  • Broadband

  • Military

Frequently asked questions

What is the two primary TNC Connector assembly method?

The two main methods of assembly TNC Connectors are:

1. Compression gland type does not require any special tools to assemble, making an ideal production cable line used in laboratories with the intention of small production.

1. Crimp type, on the other hand, requires greater accuracy and correct crimping tools to make sure that the Connector is appropriately crimped. This method is ideal for mass production runs as this method is faster and more cost-effective.

Both TNC assembles methods should have the same amount of insulation stripped from each other as this will ensure accurate, safe and effective assembly.

Why RS PRO?

RS PRO is our family brand to go-to and brings you a wide range for high-quality and high-value products to support your project. Trusted by engineers all over the world, every part of every RS PRO product is always rigorously tested against demanding industry standards. We are only giving the RS PRO seal of approval if we are confident of their exceptional quality, which means you can be convinced too.

Approvals

-

RS TNC RF Coaxial Connectors

A selection of popular cable and panel mount 50Ω TNC Connectors

Техническая спецификация
pdfRS Pro Datasheet
Импеданс:
50Ом
Кабель - тип:
RG58/U
Концевая заделка:
Припой
Материал контактов:
Медный сплав
Ориентация корпуса:
Прямой
Покрытие контактов:
Золото
Покрытие корпуса:
Никель
Полярность:
Normal
Рабочая частота:
0 to 11GHz
Род:
Male
Тип коаксиального разъема:
TNC Connector
Тип монтажа:
Кабельное крепление
