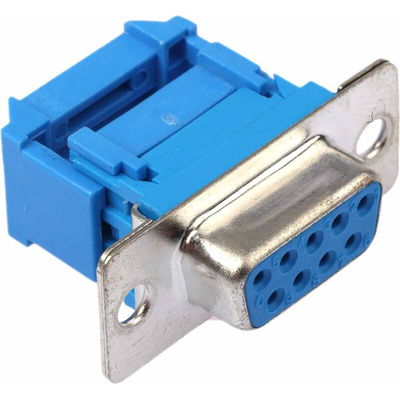

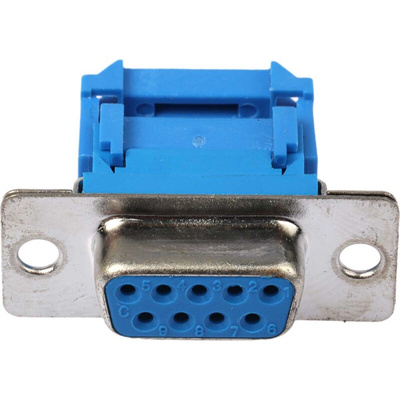

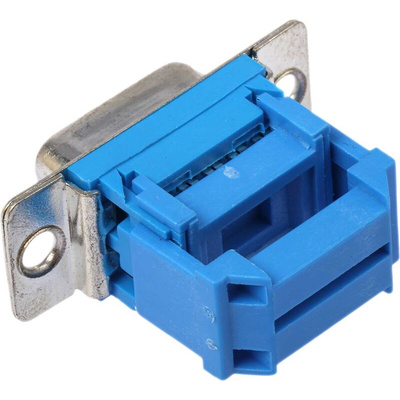

RS PRO 9 Way Cable Mount D-sub Connector Socket, 1.27mm Pitch, Разъем

RS PRO 9-Way Cable Mount D-Sub Connector Socket, 1.27 mm Pitch

Use this nine-way D-sub connector socket from RS PRO on your printed circuit board (PCB) for a reliable and secure connection to an electronic device. It has high tensile strength thanks to its metal housing, so it won't be easily damaged or dented.


The brass contacts are highly conductive for efficient signal and current transmission. They're also resistant to heat to prevent overheating. The tin plating on the contacts provides additional protection against corrosion and rust, so they can withstand heavy-duty use in harsh conditions.


This product has been tested to ensure quality and reliability. It complies with the Restriction of Hazardous Substances (RoHS) standards, meaning it contains only trace levels of any harmful materials.

Features and Benefits

• Tin contact plating


• Current rating of 1 A


• Dimensions of 30.81 (length) x 17.1 (width) x 12.55 mm (depth)


• Female gender


• Metal housing material


• Cable mounting type


• Nine contacts


• Pitch of 1.27 mm


• IDC (Insulation-Displacement Contact) termination method

RS Pro Datasheet
