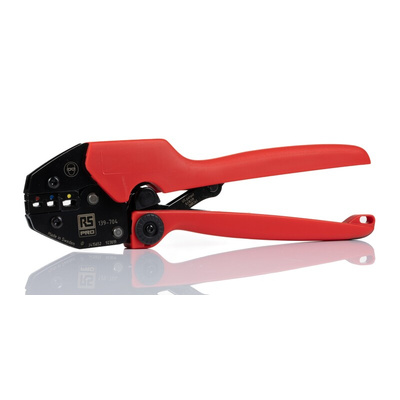

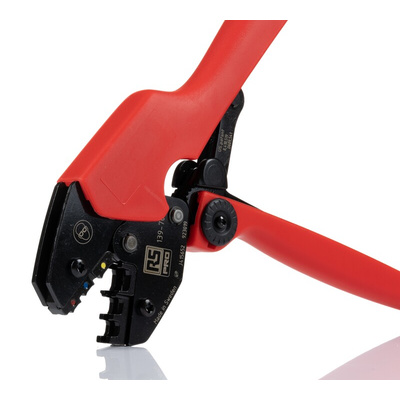

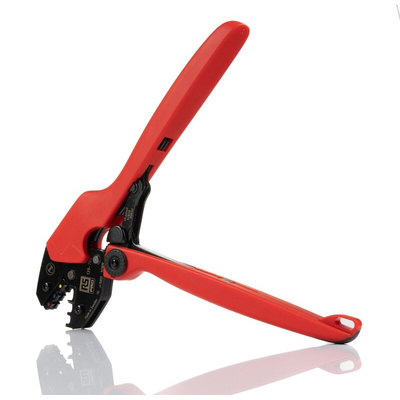

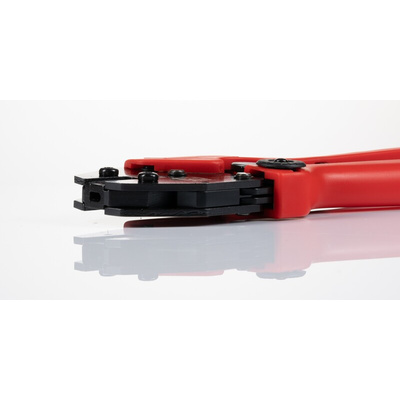

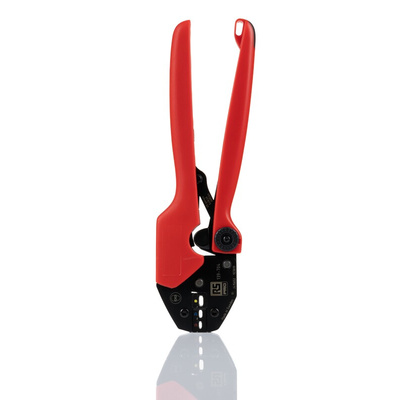

4300-1543, RS PRO Plier Crimping Tool for Terminal, Обжимные клещи

0139704
Номер производителя: 4300-1543Производитель: RS PRO
Цена за шт.
39468.00 руб. (С НДС) *
Количество 5+ 10+
Цена 37494.00 руб. 35520.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Pressmaster CRIMPEX COMFORT II Hand Crimp Tool

KSA 0760 CRIMPEX COMFORT-II is a crimp tool for insulated terminals/connectors with a cable range of 0.75 to 6.0 mm2/AWG 22 to 10. Also known as Red, Blue and Yellow terminals. See stock numbers 534-238, 534-597, 534-468 typically. The crimp operation is effortless, take the striped wire and add the terminal of your choice and crimp a symmetrical oval crimp.
The KSA 0760 CRIMPEX COMFORT-II requires reduced hand force compared to competitors due to the unique mechanism. The tool allows for both single and two-handed operation. The Non-Slip pad offers support by holding the tool in place when used on a work surface. The built-in ratchet mechanism ensures jaws fully close to complete the crimp before the finished termination can be released. The eccentric adjustment enables calibration and can thus ensure consistent performance. The KSA 0760 tool is tested to perform a minimum of 50000 cycles. If, miscrimps or obstructions occur simply use the ratchet release function. In addition, the KSA 0760 CRIMPEX COMFORT-II allows attachment of a safety strap.

Features and Benefits:
• Non-slip main handle and low friction moving handle ensure a comfortable hand grip
• Provides two-hand grip in the final phase of crimping, increasing comfort and productivity
• Unique mechanism significantly reduces hand force requirement over competing for crimping tools
• The non-slip pad holds the tool in place when using on a work surface
• Full cycle crimp mechanism to ensure consistent, reliable crimp
• Ratchet release mechanism to clear miscrimps and obstruction
• Precision eccentric adjustment for consistent performance and ability to calibrate
• Hole in handle allows attachment of safety strap for working overhead
each tool has a unique serial number for traceability
• Durable: lifespan exceeds 50000 cycles
• High strength, through hardened alloy Swedish steel construction

Typical Applications:
• Maintenance & repair
• Electrical Installations
• Cable assemblies

FAQ’s:
What is the difference between un-insulated and insulated crimp tools?
Un-insulated crimp tools are typically used for general applications, whereas the insulated crimp tools have been VDE tested up to 1000 V, designed for use where electrical current is present.

How do you maintain the product?
• Axles and other movable parts should be regularly lubricated.
• Lubrication* is recommended at least every 10,000 cycles whenever the tool is exposed to contaminants.
• Adjustment of the crimping die nests should also be checked. Readjustment of the pressure adjustment axle is necessary when the pre-load of the tool decreases significantly.

The Importance of a High-Quality Crimp
When a crimping tool is used on a terminal, two crimps take place at the same time. One is the electrical connection between the conductor and terminal. The other is the insulation crimp which provides strain relief against vibration and tension. It is important that the electrical connection is gas-tight without any voids between the wire strands and the terminal. If there any voids present, then corrosion can occur causing resistance and excessive heat which damages the electrical connection. Using a good quality crimping tool will ensure that a full, gas-tight crimp is produced preventing future deterioration of the electrical connection and insulation breakage.

Техническая спецификация
pdfPressmaster 43001543 Technical Drawing
pdfKSA 0760 data sheet
pdfKSA 0760 instruction sheet
pdfRS PRO Datasheet
pdfRS PRO Drawing
Серия:
KSA 0760
Тип обжимного инструмента:
Plier
Тип обжимного разъема:
Terminal
