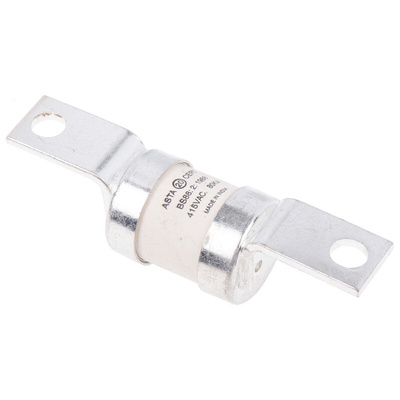

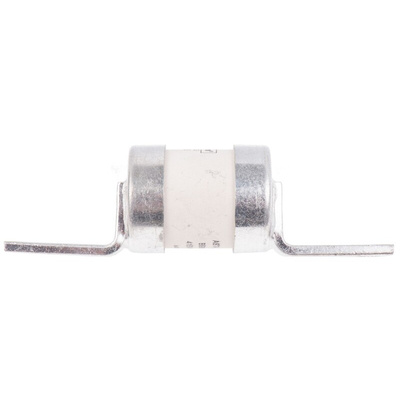

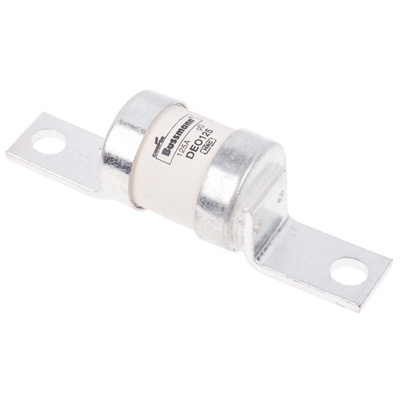

DEO125, Eaton 125A British Standard Fuse, A4, 415V ac, 94mm

Eaton Bussmann HRC Offset Tag Fuses - BS88 British Standard Fuses

Eaton Bussmann's offset tag fuses (or offset bolted tag fuses) are essentially a cylindrical fuse that is fitted with offset brackets, these brackets allow the fuse to be bolted onto a fuse holder. Predominantly, this type of fuse is used within installations as a "weak link". They are designed to break when a fault occurs, such as an overcurrent or short circuit - they are a safety and damage measure. Eaton Bussmann's fuses are commonly found within a multitude of industrial and switchgear applications, electrical equipment, wiring systems and circuit breakers. This fuse range is suitable for general purpose use.

Features & Benefits

• The low-temperature rise enables the fuse to be suitable for high-density mounting
• Fuse links, specifically designed for the protection of equipment
• Conforms to industry standards
• Low voltage fuse
• High rupture capacity (HRC)
• Suitable for three-phase applications
• Suitable for type 2 co-ordinated applications as defined in IEC 947-4
• Low power loss, typically 20% lower than the requirements of BS 88

Why use a slotted tag fuse?

A slotted tag fuse is distinguished by the metal slotted tags that extend off the ends of the fuse. This tag can either enable the fuse to have an offset tag or be centred to the fuse. Predominantly, this type of fuse is used within installations as a "weak link". They are designed to break when a fault occurs, such as an overcurrent or short circuit - they are a safety and damage protection measure within electrical circuits.

Eaton British Standard Fuse, 125A, 415V AC DEO125

Protect industrial equipment and devices from electrical faults with this British Standard fuse from Eaton. It blows quickly in the event of a short circuit or overcurrent to prevent voltage spikes from damaging components. By detecting both high-current and low-current faults, it improves safety in your electrical system. A fuse like this is suitable for 3-phase commercial lighting and security systems, as well as automated industrial processes. Because it features a high-rupture capacity, it's able to handle large short-circuit current flows. It offers consistent performance throughout its service life and is resistant to environmental ageing. As a result, it doesn't need maintenance.

• Suitable for high-density mounting on a control panel, thanks to its low-temperature rise
• Easily replaced when it blows

How do I attach this fuse to a fuse holder?

This fuse is supplied with tags that allow you to easily bolt it to a fuse holder. Its tags are solidly fixed to its body and create an air-tight seal to stop energy escaping in the event of an overload.

Note

Eaton formerly known as Bussmann
