1125305, Lapp ÖLFLEX CLASSIC 110 SY Control Cable, 5 Cores, 1.5 mm², SY, Screened, 50m, Transparent PVC Sheath, 16 AWG, Кабель

Ölflex® Classic 110 SY

From Lapp, the Olflex Classic 110 series is a PVC control cable ideal for a variety of applications. Protected by braided steel wire, the cable has a high degree of mechanical resistance. Coupled with its resistance to chemicals and oils, Olflex Classic 110 cables are fit for use in the roughest of operating conditions.

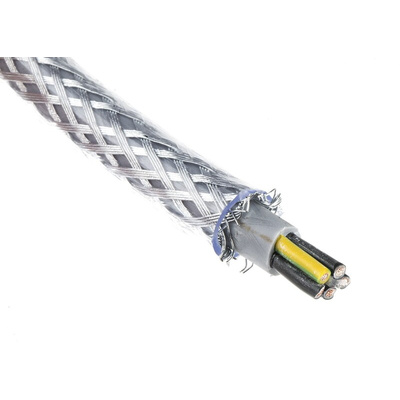

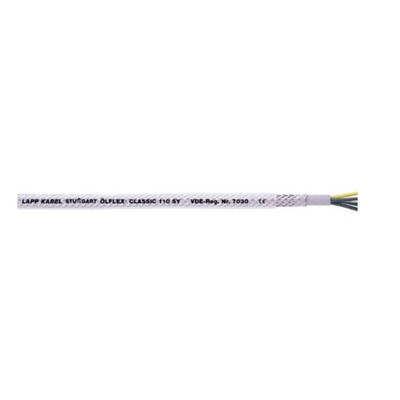

The flexible multi-core cable is comprised of fine-wire copper strands twisted in layers, covered in PVC insulation. Then cable then has an oxidated protective steel wire braiding, and a transparent flame retardant out sheath. The transparent sheath is useful to inspect the cable for wear and tear, such as corrosion and deterioration.

Features and Benefits

• Fine copper wire strands in accordance to VDE 0295 class 5 / IEC class 5
• Flame retardant to IEC 60332-1-2
• High resistance against acids, alkaline and oils
• Good Chemical Resistance
• Excellent mechanical protection
• Compliant with directive 73//23 (Low Voltage Directive)
• Operating temperature range for fixed installations -40°C to +80°C
• Operating temperature range for occasional flexing -5°C to +70°C

Applications

Lapp Olflex Classic 110 SY cable is very durable, and so can be used for a wide range of applications in areas where high mechanical stress is likely. It is often used in;

• HVAC Systems
• Industrial Machinery
• Machine Tooling
• Plant Engineering

Accessories

Lapp cables should be used with accessories that match their capabilities, and as such Lapp provides a range of durable and easy-to-install cable glands.

• 433-0945 is an M16 IP68 Skintop Cable Gland
• 433-0951 is an M20 IP68 Skintop Cable Gland
• 433-0967 is an M25 IP68 Skintop Cable Gland
• 433-0973 is an M32 IP68 Skintop Cable Gland
• 433-0989 is an M40 IP68 Skintop Cable Gland

Standards

VDE, This cable confirms to ECD 73/23/EEC (low voltage directive).

LAPP Control Cable, Galvanised Steel Braid Screen, 13.5Ω/km Conductor Resistance - ÖLFLEX CLASSIC Series - 1125305

Need flexible cabling to stand up to moderate mechanical stress? Try this SY control cable from LAPP. Thanks to a tough PVC sheath, it's resistant to acids, caustic chemicals and oils, so can use it safely with heavy-duty applications. A galvanised steel braid shield screens the conductors against electromagnetic interference to ensure a reliable, interference-free signal.

• Broad operating temperature range between -40°C and +80°C for use in extreme environments

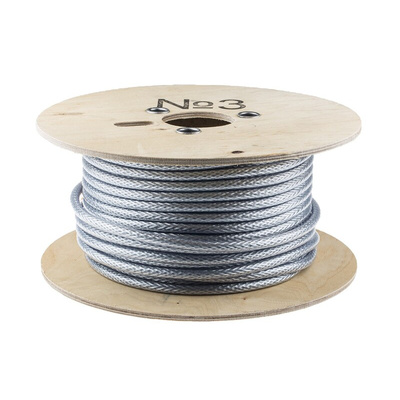

• Supplied in 50m length for unbroken connections across bigger workplaces

Applications

• Machine tools
• Conveyor belts
• Measuring equipment

Where can I use this cable?

This armoured multicore cable is designed to be strong enough to withstand the most demanding conditions. It's widely used in wiring installations where free movement is needed. Thanks to its transparent sheath, it's easy to spot signs of damage or corrosion to the core, making troubleshooting quick and simple.
