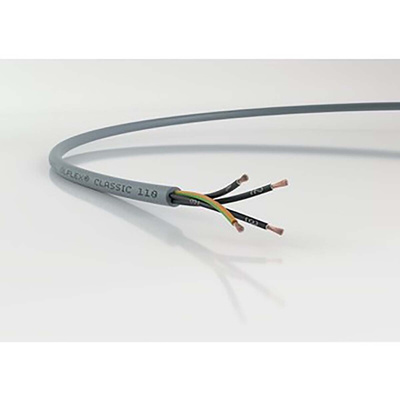

1119212, Lapp ÖLFLEX CLASSIC 110 Control Cable, 12 Cores, 1 mm², YY, Unscreened, 50m, Grey PVC Sheath, 17 AWG, Кабель

LAPP Control Cable, 12 Cores, 17AWG - ÖLFLEX Series - 1119212

This multicore cable from LAPP provides a connection solution for your control and instrumentation devices in commercial and industrial applications. Its copper conductors have low electrical resistance, so you can rely on them for a reliable connection. As this is a YY type cable, both its outer sheath and insulation are made of PVC. This material offers strong resistance to heat and impact, so it's a good choice for use in harsh environments. A 50m length means you have enough for a large-scale installation or you can cut it to size for smaller jobs.

Features & Benefits

• 12 cores for multi-signal transmission
• Working rating of 300/500V for use in low-voltage applications
• Minimum bending radius of 15 times the cable's outer diameter for flexible installation around corners
• Earth cable drains excess current to the ground for electrical safety
• Current rating of 15A for use with high-current systems

Applications

• Bottling plants
• Automated production facilities
• Machine tool engineering

What temperature range does this cable have?

This cable has an operating temperature range of -30°C to +80°C, so you use it safely in demanding industrial environments.

Standards

VDE 0295, Part 5
