1125112, Lapp ÖLFLEX CLASSIC 110 SY Control Cable, 12 Cores, 0.75 mm², SY, Screened, 50m, Transparent PVC Sheath, 18 AWG, Кабель

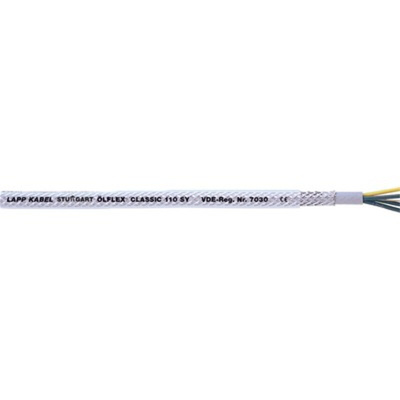

Ölflex® Classic 110 SY

From Lapp, the Olflex Classic 110 series is a PVC control cable ideal for a variety of applications. Protected by braided steel wire, the cable has a high degree of mechanical resistance. Coupled with its resistance to chemicals and oils, Olflex Classic 110 cables are fit for use in the roughest of operating conditions.

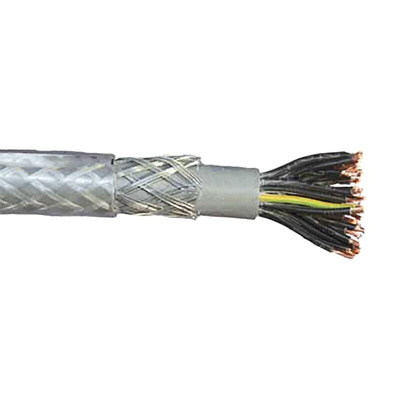

The flexible multi-core cable is comprised of fine-wire copper strands twisted in layers, covered in PVC insulation. Then cable then has an oxidated protective steel wire braiding, and a transparent flame retardant out sheath. The transparent sheath is useful to inspect the cable for wear and tear, such as corrosion and deterioration.

Features and Benefits

• Fine copper wire strands in accordance to VDE 0295 class 5 / IEC class 5
• Flame retardant to IEC 60332-1-2
• High resistance against acids, alkaline and oils
• Good Chemical Resistance
• Excellent mechanical protection
• Compliant with directive 73//23 (Low Voltage Directive)
• Operating temperature range for fixed installations -40°C to +80°C
• Operating temperature range for occasional flexing -5°C to +70°C

Applications

Lapp Olflex Classic 110 SY cable is very durable, and so can be used for a wide range of applications in areas where high mechanical stress is likely. It is often used in;

• HVAC Systems
• Industrial Machinery
• Machine Tooling
• Plant Engineering

Accessories

Lapp cables should be used with accessories that match their capabilities, and as such Lapp provides a range of durable and easy-to-install cable glands.

• 433-0945 is an M16 IP68 Skintop Cable Gland
• 433-0951 is an M20 IP68 Skintop Cable Gland
• 433-0967 is an M25 IP68 Skintop Cable Gland
• 433-0973 is an M32 IP68 Skintop Cable Gland
• 433-0989 is an M40 IP68 Skintop Cable Gland

Standards

VDE, This cable confirms to ECD 73/23/EEC (low voltage directive).

LAPP ÖLFLEX CLASSIC 110 SY Series Control Cable, Galvanised Steel Braid, Copper Conductor - 1125112

This control cable provides VDE approved control and connectivity, ensuring high performance and durability in demanding environments. With a robust design and construction, it is ideal for use in a wide range of applications across different industries.

Features & Benefits

• SY cable type ensures reliable control and connectivity in various electrical systems
• PVC bedding and insulation material provide excellent protection and durability
• Copper conductor with a fine wire strand offers high conductivity and efficiency
• Galvanised steel braid adds mechanical protection and enhances the cable's lifespan
• CPR certification guarantees compliance with safety standards and regulations
• Oil resistant cable construction ensures performance even in challenging environments
• Filler material enhances cable flexibility and resilience

Applications

• Ideal for controlling machine tools in manufacturing processes.
• Suitable for use in production lines for efficient operation.
• Perfect for control equipment on conveyors for seamless functionality.
• Used in measuring, regulating, and computer units for precise control.
• Can be employed in various automation systems for optimal performance.

Can it withstand harsh environmental conditions?

The ÖLFLEX Classic 110 SY control cable is designed to withstand a wide range of environmental conditions, ensuring reliable performance in challenging settings.

Will it provide secure connectivity in industrial applications?

This control cable offers secure connectivity in industrial applications, making it a dependable choice for various industries.

Is it suitable for outdoor installations?

The ÖLFLEX Classic 110 SY control cable is suitable for outdoor installations with UV protection, ensuring long-lasting performance in outdoor settings.

Can it be used for controlling machine tools?

Yes, this cable is specifically designed for controlling machine tools, providing efficient and reliable performance in manufacturing environments.

Does it offer resistance against oils and chemicals?

The cable is oil-resistant, ensuring optimal performance even in the presence of oils and chemicals in industrial settings.
