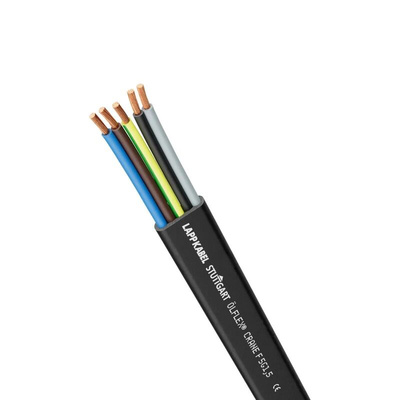

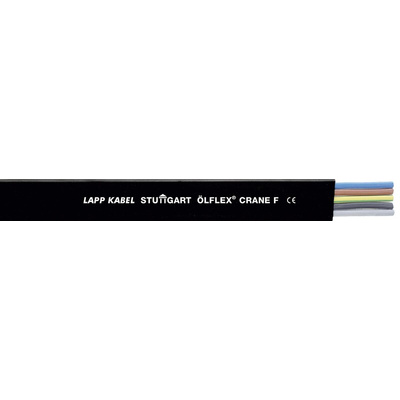

0041044, Lapp ÖLFLEX CRANE F Control Cable, 8 Cores, 1.5 mm², YY, Unscreened, 50m, Black Rubber Sheath, 15 AWG, Кабель

Ölflex Flat Conveyor, Crane and Hoist Cable

NEOFLEX® (CRANE F) Flat Form Cable is a polychloroprene flat cable for application in rooms as well as in the open as a power and control cable.

Plain copper stranded wire conductor
Core insulation: rubber compound 3GI3 in accordance with VDE 0207 part 20
Colour code in accordance with VDE 0293
Outer sheath: polychloroprene compound 5GM3 in accordance with VDE 0207 part 21 (black)
Working voltage (at 20°C): 300 / 500V; test voltage: 3000Vac
Minimum bending radius: 10x cable diameter
Cold impact resistance in accordance with VDE 0472 part 611, in case of -50°C
Flame-retardant in accordance with VDE 0482 part 265-2-1 (IEC 60332-1)
EC directive: conforms to ECD 73/23/EEC (low voltage directive)

LAPP Control Cable, Flame-Retardant, 31.5 (W) x 6.2mm (H) Outer Dimensions - ÖLFLEX CRANE FSeries - 0041044

Ensure a steady power supply to your electric circuit using this control cable from LAPP. It features highly conductive copper conductors for reliable current delivery. Thanks to its tough rubber outer sheath, this cable is flame retardant, so it won't contribute to the spread of a fire. The generous length of 50m gives you sufficient stock for long-distance or multiple short-range jobs.

Features & Benefits

• Drain wire to safely discharge fault currents
• UV resistance enables safe use outdoors
• Minimum bend radius of 10 times the outer diameter offers flexibility in tight spaces
• Wide operating temperature range between -25°C and +90°C covers use in harsh conditions

Applications

• Construction industry
• Electrical engineering
• Robotics systems
• Server rooms

What type of insulation does this cable have?

This cable comes with robust rubber insulation that helps shield personnel from electric shock during handling.
