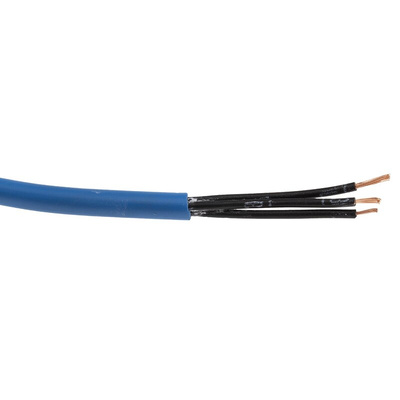

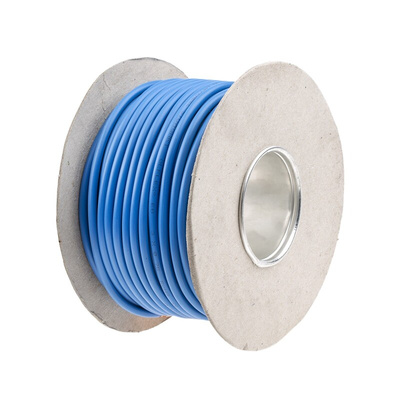

12421, Lapp ÖLFLEX EB Control Cable, 3 Cores, 0.75 mm², YY, Unscreened, 50m, Blue PVC Sheath, 18 AWG, Кабель

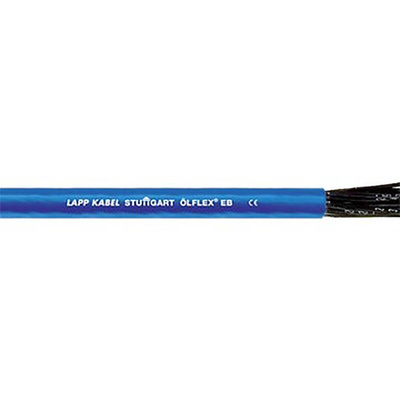

Ölflex EB Blue Intrinsically Safe Control Cable (unscreened)

From Lapp, the Olflex® EB is a PVC control cable for use in intrinsically safe circuits in potentially explosive atmospheres.

The Olflex cable is very flexible, with smaller diameters that make it ideal for space-saving applications. It is also weather resistant, meaning it is suitable for use outdoors.

Features and Benefits

• UV and Weather Resistant
• Flame-retardant
• Chemical resistance
• Operating temperature in a fixed installation: -40°C to +80°C
• Operating temperature with occasional flexing: -5°C to +70°C

Applications

This Olflex cable is designed for use with intrinsically safe circuits with 'i' type protection, and so can be used where explosion by the accidental ignition of flammable gases or dust is a concern.

Accessories

Olflex cables should be used alongside accessories that match their capabilities, such as Lapp's range of ATEX approved cable glands.

• 199-563 is an M12 ATEX Approved Skintop Cable Gland
• 199-579 is an M16 ATEX Approved Skintop Cable Gland
• 199-585 is an M20 ATEX Approved Skintop Cable Gland
• 199-664 is an M25 ATEX Approved Skintop Cable Gland

Note

The product is for use in the voltage range:<50Vac and <75Vdc and is therefore not in accordance with the ECD 73/23/EEC (Low Voltage Directive). Compatible connecting glands must be used and correctly installed to meet ATEX requirements.

LAPP Control Cable, Chemical-Resistant, 0.75mm² Cross-Sectional Area - ÖLFLEX Series - 0012421

Plug your device into a stable power feed using this control cable from LAPP. It has a three-core design that accommodates multiple signal transmissions to the circuit. The PVC outer sheath offers insulation protection, preventing shocking incidents from fault currents. As this jacket has flame-retardant properties, it helps to keep fires from spreading. This unit is resistant to weather and UV rays, making it the ideal choice for outdoor applications.

Features & Benefits

• Length of 50m for convenient long-range connection or bespoke cut-to-size jobs
• Bare copper wires are highly conductive for reliable performance
• Chemical-resistant for use in harsh industrial settings
• 500V voltage rating suits medium-voltage applications

Applications

• Mining equipment
• Telecommunications
• Packaging facilities
• Automotive engineering

How flexible is this cable?

This cable has a minimum bending radius of 4 times its outer diameter (5.7mm) in fixed installations, so you can easily route it around corners.
