12423, Lapp ÖLFLEX EB Control Cable, 7 Cores, 0.75 mm², YY, Unscreened, 50m, Blue PVC Sheath, 18 AWG, Кабель

LAPP Blue Control Cable, 50m Length, 7 Cores - ÖLFLEX Series - 12423

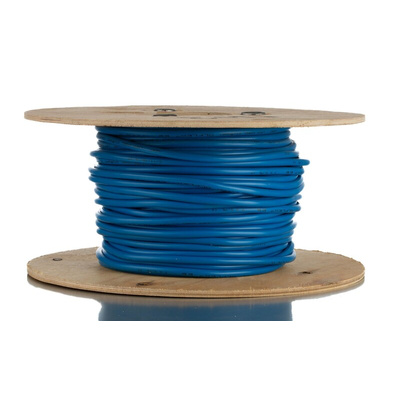

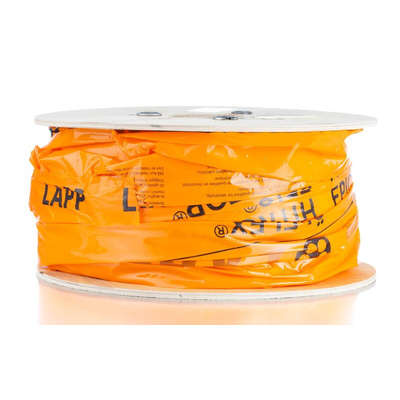

Establish communication between your devices with this multicore cable from LAPP. It's a YY type that features insulation and an outer sheath made of PVC. This material provides durability, impact resistance and protection from electric shocks, so it's suited to industrial use. As the cable comes in a 50m length rolled up in a reel, there's enough for a long single run or you can easily cut it for multiple jobs. A control cable like this one is frequently used for outdoor installations in industrial environments as the sheath offers excellent protection against weather and UV light.

Features & Benefits

• Slim diameter of 7.3mm is suitable for setups with limited space
• Core-to-core capacitance of 140nF/km for high integrity signals
• Wide operating temperature range of -40°C to +80°C for use in demanding conditions

Applications

• Office equipment
• Aviation industry
• Chemical processing plants

What's the voltage rating of this cable?

This cable has a voltage rating of 500V, so it's suitable for moderately demanding systems.

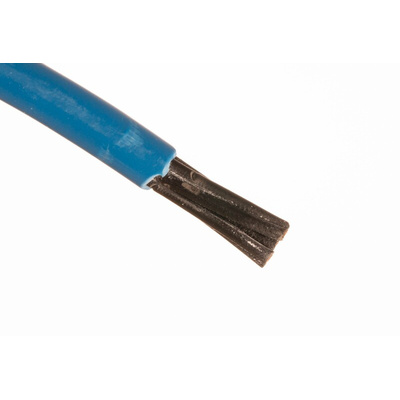

Why are the conductors of this cable twisted around each other?

The conductors on this cable are twisted around each other in pairs to prevent crosstalk and electromagnetic interference (EMI) and deliver clear, noiseless signals.
