12645, Lapp ÖLFLEX EB CY Control Cable, 12 Cores, 0.75 mm², CY, Screened, 50m, Blue PVC Sheath, 19 AWG, Кабель

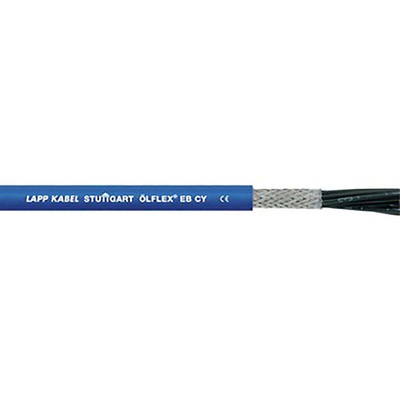

Ölflex EB CY Blue Intrinsically Safe Control Cable (screened)

From Lapp, the Olflex® EB CY is a PVC control cable for use in intrinsically safe circuits. It features a copper braid screen that protects against electrical interference, meaning it can be used in EMC sensitive environments. This cable protects signal transmission within intrinsically safe circuits from electromagnetic interference.

The Olflex cable is very flexible, with smaller diameters that make it ideal for space-saving applications. It is also weather resistant, meaning it is suitable for use outdoors.

Features and Benefits

• UV and Weather Resistant
• Flame-retardant
• High degree of screening with low transfer impedance
• Chemical resistance
• Operating temperature in a fixed installation: -40°C to +80°C
• Operating temperature with occasional flexing: -5°C to +70°C

Applications

With its suitability for EMC environments and robust, flexible nature, this Olflex cable is often used in signalling and industrial applications. It is designed for use with intrinsically safe circuits with 'i' type protection, and so can be used where explosion by the accidental ignition of flammable gases or dust is a concern.

Accessories

Olflex cables should be used alongside accessories that match their capabilities, such as Lapp's range of ATEX approved cable glands.

• 199-563 is an M12 ATEX Approved Skintop Cable Gland
• 199-579 is an M16 ATEX Approved Skintop Cable Gland
• 199-585 is an M20 ATEX Approved Skintop Cable Gland
• 199-664 is an M25 ATEX Approved Skintop Cable Gland

LAPP Control Cable, Flame-Retardant, 10.9mm Outer Diameter - ÖLFLEX EB CY Series - 12645

Ensure smooth transmission of power and data to your machinery using this control cable with a 0.75mm² cross-sectional area from LAPP. It has copper conductors that you can rely on for efficient current transfers. The cable's 12 numbered cores add up to straightforward wiring, saving time and hassle. A robust braided foil screen helps shield the signals from static noise and EMI. As the blue PVC sheath is flame-retardant, you can rest assured it stops embers from spreading in the event of a fire.

Features & Benefits

• Compact outer diameter of 10.9mm to fit into small spaces
• Chemical-resistant to withstand harsh industrial settings
• Length of 50m for long-range or cut-to-size connection
• Minimum bend radius of four times its diameter for installation flexibility

Applications

• Automotive engineering
• Telecommunications
• Manufacturing industry
• Petrochemical production

Can I use this cable outdoors?

Yes, you can, thanks to its tough UV and weather-resistant PVC jacket.
