1123071, Lapp ÖLFLEX CLASSIC 130 H Control Cable, 5 Cores, 1 mm², YY, Unscreened, 50m, Grey LSZH Sheath, 17 AWG, Кабель

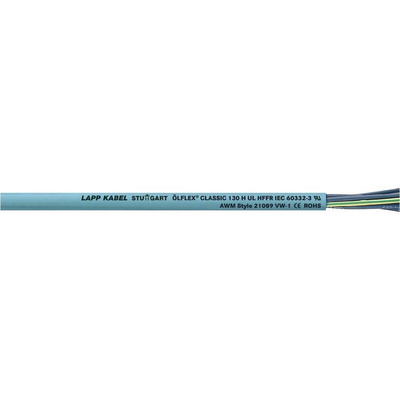

Ölflex Classic 130H Halogen Free Control Cable

From Lapp, this Olflex Classic 135 CH cable is a control cable for use in flexible applications and fixed installations under normal mechanical strain. With a small cable diameter and good flexibility, the cable is ideal for easy and space saving installations.

This HFFR cable is also flame retardant and halogen free, which makes it suitable for use in environments where public safety and property protection is a concern.

The cable is comprised of fine-wire strands of copper wire, with a halogen free core insulation and sheath. It is suitable for use in both dry and damp indoor environments.

Features and Benefits

• Flexible Cable
• Certified for maritime applications
• Flame-retardant according to IEC 60332-1-2
• Halogen-free according to IEC 60754-1
• Low smoke density according to IEC 61034-2
• Operating Temperature with occasional flex -25°C to +70°C
• Operating Temperature in fixed installations -40°C to +80°C

Applications

The Olflex Classic halogen free control cable is ideal for use in specialist applications such as;

• Public Transport
• HVAC Systems
• Industrial Machinery
• Stage and television studios
• For use in applications where humans and animals may be at risk of fire hazards
• Public buildings or areas e.g. airports, office buildings

Accessories

Olflex classic cables should be used with accessories that match their capabilities. As such, Lapp provide a halogen-free range of easy-to-install cable glands.

• 199-670 is an M12 Skintop Halogen Free Cable Gland
• 199-642 is an M16 Skintop Halogen Free Cable Gland
• 199-658 is an M20 Skintop Halogen Free Cable Gland
• 199-541 is an M25 Skintop Halogen Free Cable Gland
• 199-557 is an M32 Skintop Halogen Free Cable Gland

Standards

VDE certified

LAPP Multicore Cable, Bare Copper Conductor, 10MΩ/km Conductor Resistance - ÖLFLEX Series - 1123071

For reliable signal transfer in small control networks, choose this 17AWG multicore cable from LAPP. It's designed to help you measure and regulate transmissions so that your automation devices continue to work safely and effectively. As the cable is unscreened and has a high bending radius of 4 times its 7.2mm diameter, it's a flexible option for use in complex systems or awkward spaces.

Features & Benefits

• 100m length, so you'll have plenty in stock
• Test voltage of 4000V indicates it's safe to use in powerful electrical systems
• Low smoke zero halogen sheath is flame-resistant and won't emit dangerous fumes

Applications

• Public transportation
• HVAC systems
• Theatres and television studios

Can I use this cable in demanding environments?

Yes. This cable has a wide operating temperature range between -40°C and +80°C in fixed positions and between -25°C and +70°C where flexing is likely to occur.
