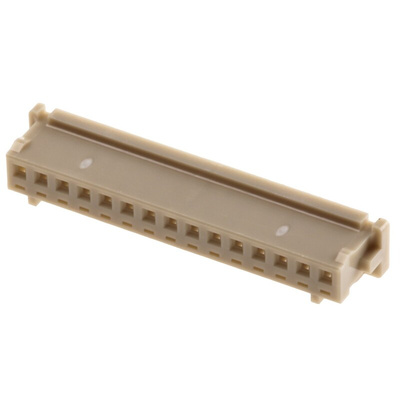

DF13-15S-1.25C, Hirose, DF13 Male Connector Housing, 1.25mm Pitch, 15 Way, 1 Row, Корпус разъема

Hirose DF13 Series, 1.25 mm Miniature Connector Housings

The DF13 Series of crimp connector housings are typically used in numerous every day applications such as digital cameras, LCD displays, digital video recorders, car navigation, access control units and measurement devices. They have a miniaturised design and are ideal for use in devises that require multiple signals with space saving in mind.

Features and Benefits

• Miniature in size
• Available in single and double row configurations
• Double row achieves 30% higher density than the single row
• 1.25 mm pitch
• Polarisation slots to prevent incorrect insertion
• Friction locking mechanism for securing mating connection

Note

1.25mm Wire to Board - Hirose DF13

DF13 Series Connector Data Sheet

Datasheet
