EVG-16/3PHAS/12MODUL + BS-FAZ + FAZ-XK25, Eaton EVG 3 Phase Busbar, 415V

Eaton Busbar, 3 Phase, 80A Current Rating - EVG Series - EVG-16/3PHAS/12MODUL + BS-FAZ + FAZ-XK25

When you need to distribute electricity efficiently in your system, go for this busbar from Eaton. You can use it with the FAZ and PLS6 series MCBs to put together a safe and effective circuit. As it's a 3-phase unit with a 415V AC voltage rating, it works effectively with the supply commonly used for data-hungry applications such as large induction motors and factory machinery.

Features & Benefits

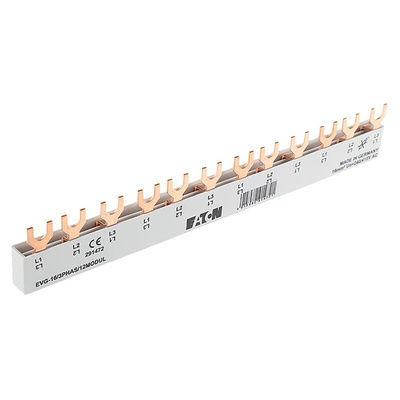

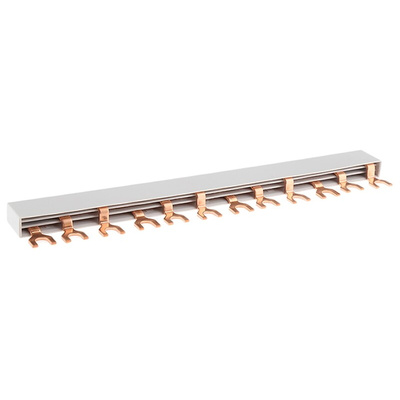

• Fork-type busbar that easily connects to the bottom of an MCB

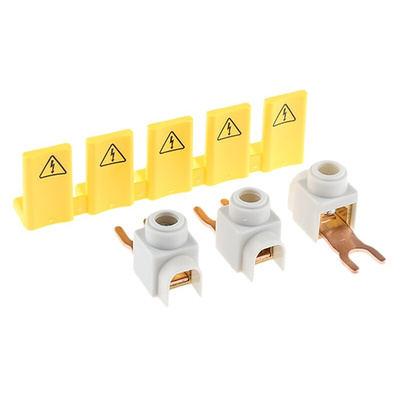

• Safety stand helps protect users from electric shocks

What's an MCB?

An MCB, or miniature circuit breaker, is a device that protects electrical equipment from overcurrent caused by overloads or short circuits. It does the same job as a fuse by breaking the circuit in the event of a fault and interrupting the flow of power. Unlike a fuse, however, an MCB can be reset once the issue causing the overcurrent has been identified and fixed. It also offers the benefit of allowing you to isolate parts of a circuit. Powering your MCB to a busbar is a convenient way of keeping it connected.

3Phase 12 Way Busbar Dimensions

Datasheet - EVG-16/3PHAS/12MODUL + BS-FAZ + FAZ-XK25
