BL5-2, Hanna Instruments Diaphragm Electric Operated Positive Displacement Pump, 5L/h, 101.5 psi, 220 V, 240 V, Насос

Hanna Instruments Dosing Pump

The Hanna Instruments black stone BL-series dosing pump uses a minimum number of moving parts, therefore reducing the chance of mechanical failure. Its maximum flow rate is 5l/hour. The external flow control (the potentiometer) on the front of the pump allows for adjustment of flow from 0% to 100% of the nominal capacity of the pump. It is easy to install, with wide flat bases and mounting holes to allow for the tank, shelf or floor mounting (horizontal mounting).

Features and Benefits

The supply voltage is 220V and 240V
Input power is 200W
Maximum working pressure is 7bar
Maximum working temperature is 500C
Dosing frequency 120 strokes/minute
These pumps are manufactured to the highest degree of mechanical precision, with materials selected for their intrinsic abilities to withstand chemical attacks
The diaphragm is made from PTFE, which unlike regular laminated diaphragms, is wear-resistant.
The balls are made from glass
The pump heads and O-rings are made from Kynar, PTFE or Viton
Blackstone pumps are fitted in such a way as to be completely hermetically sealed, with protection against splashing and accidental spillages
The reinforced polypropylene housing withstands chemical attacks and offers superior strength, suited to challenging industrial environments

Applications

Chemical industries
Pharmaceutical industries
Food/drinks industries
Plastic manufacturing

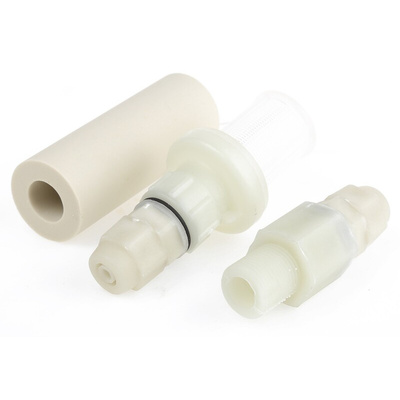

The pump comes with the following: Discharge and suction valves, Ceramic weight and 7m tubing. It has a power cable attached, but no plug as it can be wired into various power sources.

Certifications

IP65 rated

Instruction Manual

Datasheet
