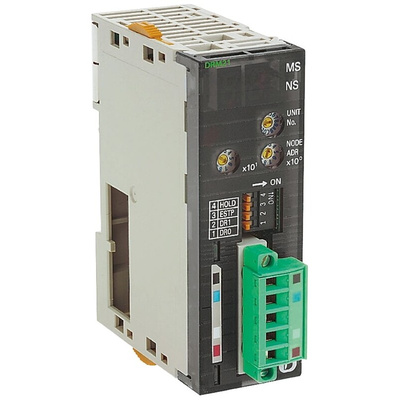

CJ1W-DRM21, Omron PLC I/O Module for Use with CJ Series, Модуль

Omron DeviceNet PLC Module

The Omron programmable logic controller(PLC) I/O DeviceNet module is a communication interface, which supports communication between input and output units and the PLC with the help of the DeviceNet protocol. This PLC is for use with CJ series. Its voltage rating ranges between 11VDC and 25VDC. It is equipped with settings and monitor functions aimed at improving both, design and start-up efficiency.

Features and Benefits

Allows control of up to 32,000 points (2,000 words) per master and ensures a high degree of simultaneity between data
Can be used as both, master and slave at the same time
Achieve maximum performance by using in combination with a configurator
Files of master and slave settings can be uploaded and downloaded using memory cards, allowing effective debugging and easier setup
DIN rail type mounting
Supports different baud rates 125kbps, 250kbps and 500kbps
Improved simplified maintenance
Easy push-in wiring as no tools are required
Each terminal also features a test point
3-part construction means removable terminal block and hot-swappable electronics module

Applications

Industrial automation
Robotics
Automobiles industry
