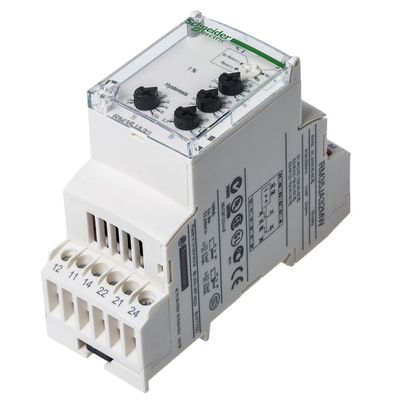

RM35JA32MW, Schneider Electric Current Monitoring Relay, 1 Phase, DPDT, DIN Rail, Реле контроля

Schneider Electric Current Monitoring Relays - Zelio Control

Created and designed to provide you with reliable information on how your system is performing. Using the relays enables you to monitor and detect power loss from damaged or contaminated panels quickly meaning that you can respond immediately. These RM35 JA current control relays are also used for controlling alternating and direct currents if an overcurrent occurs. Featuring automatic alternating or direct current recognition and a large measurement range. Each current monitoring relay within this range of products monitors heating and lighting circuits and has a monitor and generator load status.

• Function then allows the device to check its own power supply

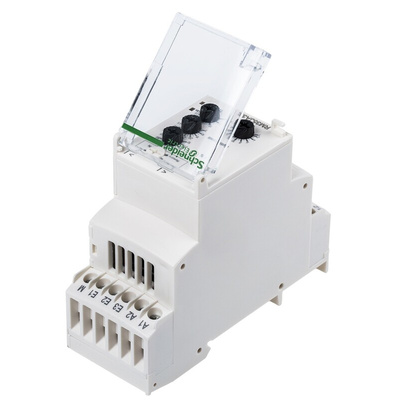

• Clear, hinged front cover
• LED display of output status
• DIN-Rail mounting
• Standards - NF EN 60255-6 and IEC 60255-6 and approvals - UL, CSA, GL, C-Tick, GOST
• Safe and easy current measurement
• Helps to protect against voltage and over current

Schneider Electric Modular 1-Phase Current Control Relay - RM35JA32MW

• Commonly referred to by the relays short name RM35JA
• Forms part of the Zelio range of products
• Features a switching capacity of 1250 VA
• Has a minimum switching current of 10 mA at 5 V DC and a maximum switching current of.5 VA AC
• Time delay - Adjustable 1...20 s, 0 + 10 % on energisation Ti and adjustable 0.3...30 s, 0 + 10 % on crossing the threshold Tt
• Reset time of 1500 ms time delay
• Electrically durable up to 100000 cycles and mechanically durable up to 30000000
• Has an ingress protection rating of - IP20 (terminals) and IP30 (casing)
• This monitoring relay is 35 mm in width
