RM17TG00, Schneider Electric Phase Monitoring Relay, 3 Phase, SPDT, 183 → 528 V, DIN Rail, Реле контроля

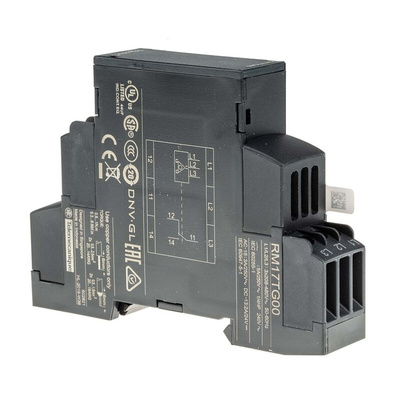

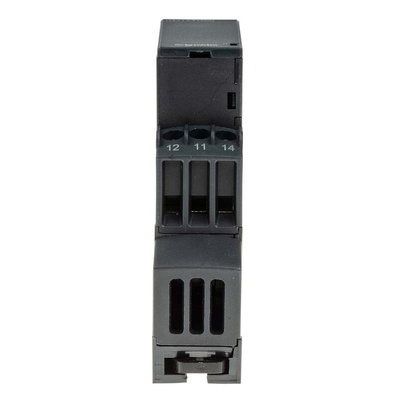

Schneider Electric Phase Monitoring Relay - RM17TG00

Forming part of the Zelio Control range of products, the RM17TG00 phase control relay is for monitoring phase sequence and loss of one or multiple phases as well as correcting sequencing of phases L1, L2, and L3.

Features & Benefits

• Has a switching capacity of 1250 VA


• The maximum switching voltage is 250 V AC, 250 V DC


• Clear display of control state via LED (yellow for relay on)


• Monitors its own power supply


• DIN rail mounting


• Conforms to NF EN 60255-6 and IEC 60255-6 standards


• Approved to UL, CSA, GL, C-Tick, GOST


• Without time delay


• The nominal output current is 5A


• IP20 (terminals) conforming to IEC 60529 degree of protection


• IP30 (casing) conforming to IEC 60529 degree of protection


• The material of housing is comprised of a self-extinguishing plastic


• 1 C/O output contacts


• The control circuit frequency is 50...60 Hz +/- 10 %

Typical Applications

Customers will typically find the phase control relay being used in applications that include:

• Three-phase motors


• Moving 3 phase machines and equipment


• Industrial applications


• Power management, Automation & Process control


• Pumps, fans, mining and conveyors


• Cranes and escalators
