BMXCPS2010, Schneider Electric Modicon M340 Series PLC Power Supply for Use with Modicon M340, 240 V, Блок питания

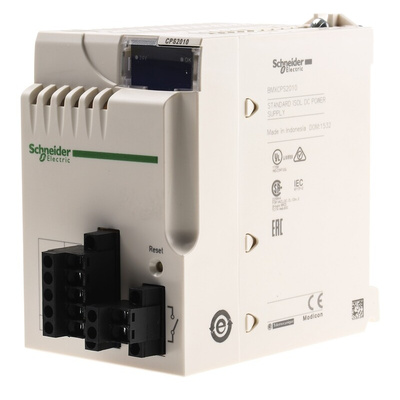

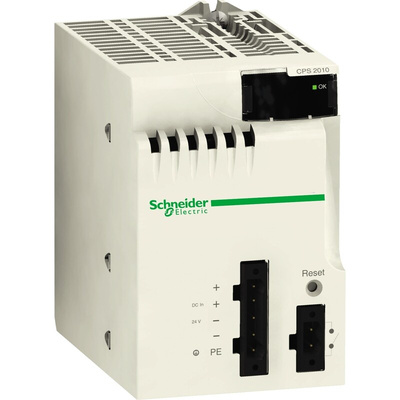

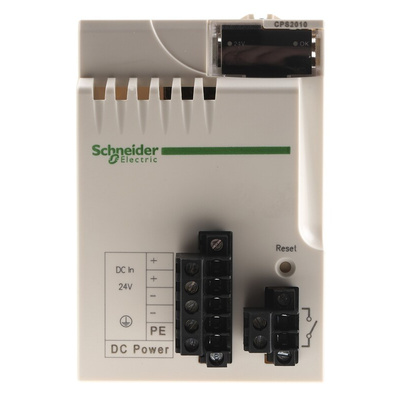

Schneider Electric PLC Power Supply Module For Use With Modicon M340 Series, 8.5W Power Dissipation - BMXCPS2010

Searching for a greener way to energise your PLC? Choose this PLC power supply module from Schneider Electric. It's compatible with the Modicon M340 series and is an environmentally-friendly choice that's mercury-free and 77% recyclable. It delivers a 2.5A current output, so is suited to low-powered systems, but won't add strain as it’s lightweight at 0.29kg. To prevent overheating and reduce potential downtime, the module is capable of dispersing up to 8.5W.

Features & Benefits

• Cold reset by a simple push button provides easy maintenance and operation
• LED display for at-a-glance monitoring of operational status
• Housing features an all-climates TC treatment for durability

Applications

• Industrial automation
• Electro-mechanical processes
• Manufacturing facilities

How resilient is the PLC power supply module when used in industrial environments?

This module has an IP20 rating, meaning it's touch-proof and resistant to dust or other objects that are over 12mm in size. It also has high vibration resistance of 3gn and shock resistance of 30gn, so it can stand up to heavy-duty use. You can rely on the power supply to perform effectively in a wide temperature range between 0°C to +60°C.
