BMXP342020, Schneider Electric PLC Expansion Module for Use with Modicon M340, Analogue, Discrete, Analogue, Discrete, Модуль расширения

Schneider Electric Modicon M340 PLC Range

Equipped with astounding memory and performances, this featherweight version will inspire your applications with new momentum. Designed to operate in total synergy with other Schneider Electric devices, Modicon M340 is a building block towards your total solution.

Performance - Data rate: 20kb/s to 1Mb/s (bus length dependent), Internal RAM capacity: 4Mb (3584kb of program memory); 256kb of data memory
Compact design - 3 communication ports integrated in the processor, Mounting in low depth cabinet (<150mm), High-density discrete I/O modules with 64 channels in a 32mm wide format
Communicative, with its integrated ports - CANopen machine and installation bus, Ethernet TCP/IP network - Transparent Ready, Modbus serial link or character mode, Remote access via STN, GSM, Radio or ADSL
Expert - Counter modules with ready-to-use functions, Function block library dedicated to motion control, MF(Motion Function Blocks) to the PLCopen standard, Advanced library of process control blocks oriented towards control of machinery
Innovative and Rugged - USB port as standard, Embedded webserver, Recipe file, management via FTP protocol, “Plug and Load” SD memory card
No batteries, Rack architecture enabling hot swapping of modules during operation (Hot-Swap), Exceeds the standards in terms of shocks, vibrations, temperature, altitude and withstand to electrical interference

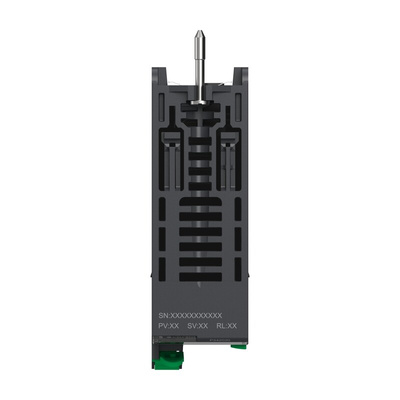

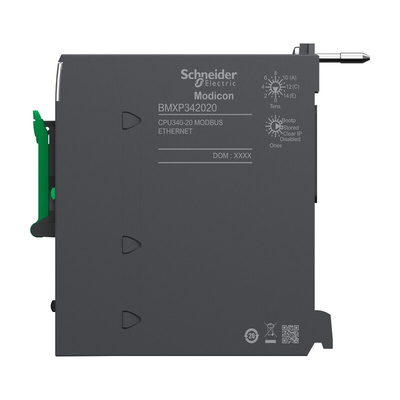

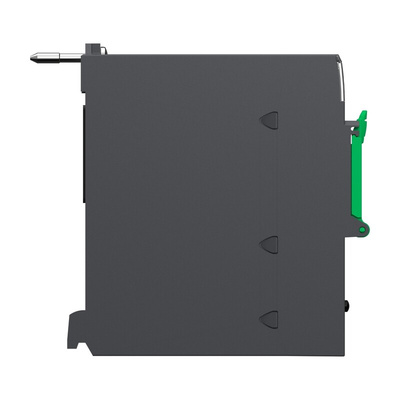

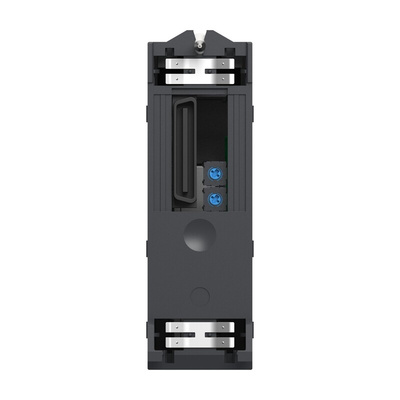

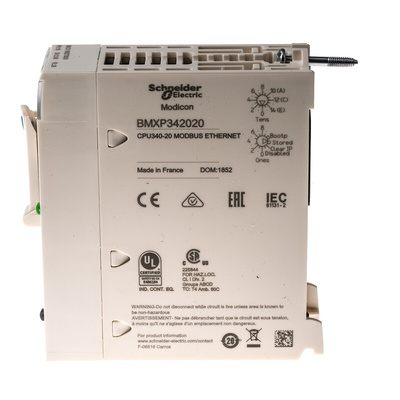

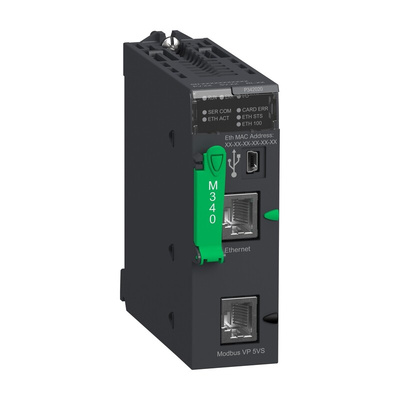

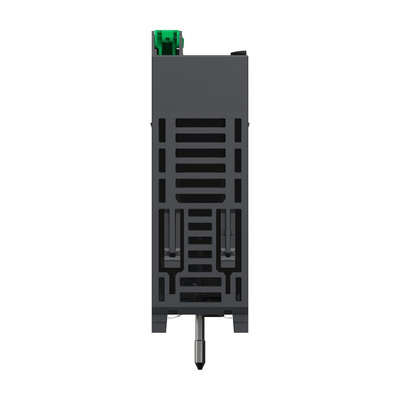

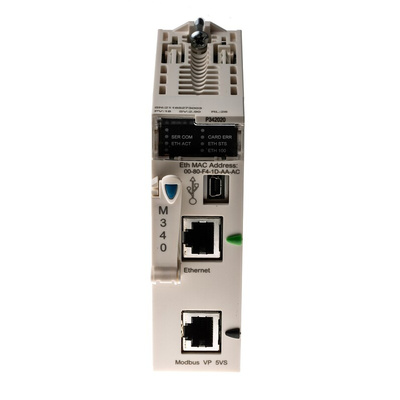

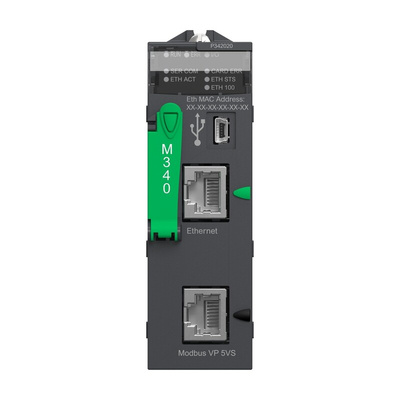

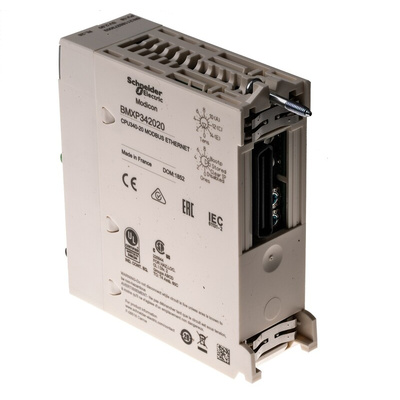

Schneider Electric Modicon M340 PLC Expansion Module, Analogue Discrete, 1024 (Discrete I/O) 256 (Analogue I/O) - BMXP342020

This is a key component of the Modicon M340 automation platform. This processor module is designed for a wide range of applications and offers a transparent ready concept alongside CANopen connectivity. As a testament to its capabilities, it supports a maximum of 1024 discrete I/O in multi-rack configuration and 256 analogue I/O.

Features & Benefits

• Efficiently monitor and manage events using Modbus communication
• Facilitate diagnostics and troubleshooting by leveraging Modbus monitoring

Applications

• Ideal for controlling and managing processes in manufacturing, assembly lines, and industrial facilities
• Suitable for building management systems, HVAC control, and energy management
• Enables precise control over chemical processes, water treatment, and other industrial processes

What is the maximum number of discrete I/O supported by the BMXP342020?

The BMXP342020 supports up to 1024 discrete I/O in multi-rack configuration.

How many analogue I/O channels can the BMXP342020 handle?

It can handle up to 256 analogue I/O channels.

Is the BMXP342020 compatible with Modbus communication?

Yes, it supports both event counters Modbus and diagnostic counters Modbus monitoring
