MEAN WELL Switching Power Supply, RSP-1000-24, 24V dc, 40A, 960W, 1 Output, 127 → 370 V dc, 90 → 264 V ac, Источник питания

Mean Well Power Switch Mode Power Supply

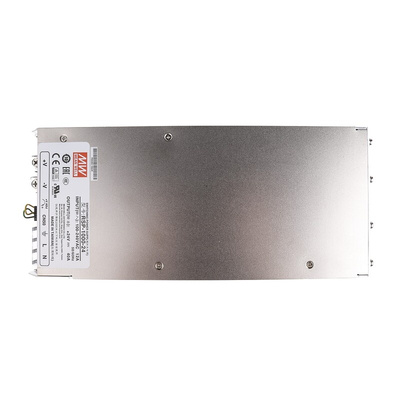

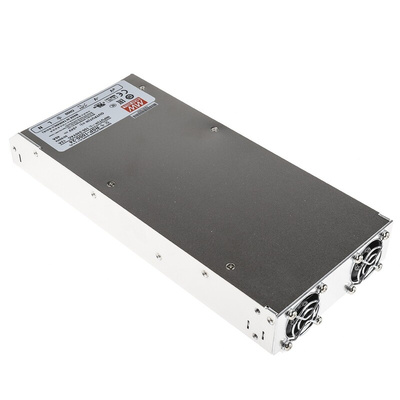

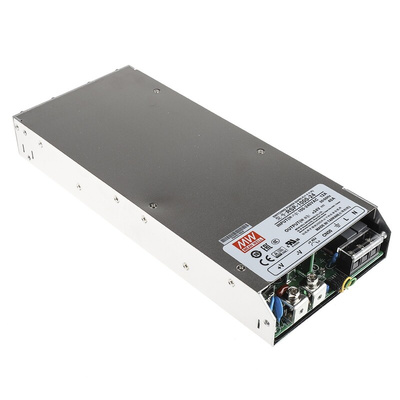

The Mean Well RSP-1000 series 960W single output AC to DC embedded switch mode power supply has an output current rating of 40A at 24VDC. It has a universal input supply voltage rating from 90VAC to 264VAC and 127VDC to 370VDC.
Note:
De-rate above 50°C.

Features and Benefits

high-efficiency up to 88%
Long life and high reliability
Low profile is1U
High power density
Auxiliary power is 5V/0.5A
Built-in dual fans
DC OK signal
Remote sense
Remote ON-OFF control
Current sharing up to 3000W (2+1)
LED indicator for power on
Easy installation, input screw terminals and output 2xM4 bolts (supplied)
Adjustable output voltage (±10%)
Short circuit protection
Overload protection
Overvoltage and over temperature protection

Certifications

EN 60950-1
UL 60950-1
TUV approved
CB approved
UL approved
EN 61000-3-2 (harmonic current)
EN 55022 class B (EMC)
EN55032 (CISPR32) class B
EN61000-3-2,-3
GB9254 class B
GB17625.1
EN55024
EN61000-6-1
Criteria A

RSP-1000 Series Datasheet

Declaration Of Conformity
