Mean Well Power Switch Mode Power Supply

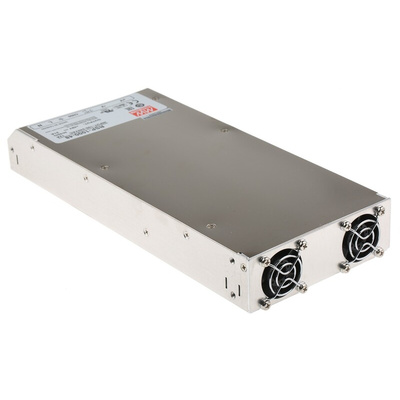

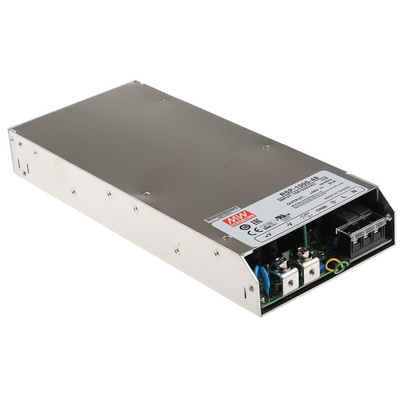

The Mean Well RSP-1000 series 1008W single output AC to DC embedded switch mode power supply has an output current rating of 21A at 48VDC. It has a universal input supply voltage rating from 90VAC to 264VAC and 127VDC to 370VDC.
Note:
De-rate above 50°C.
Features and Benefits
high-efficiency up to 90%
Long life and high reliability
Low profile is1U
High power density
Auxiliary power is 5V/0.5A
Built-in dual fans
DC OK signal
Remote sense
Remote ON-OFF control
Current sharing up to 3000W (2+1)
LED indicator for power on

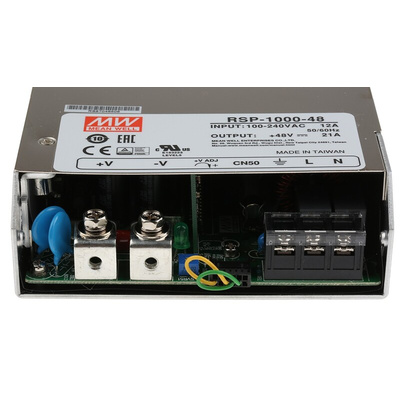

Easy installation, input screw terminals and output 2xM4 bolts (supplied)
Adjustable output voltage (±10%)
Short circuit protection
Overload protection
Overvoltage and over temperature protection
Certifications
EN 60950-1
UL 60950-1
TUV approved
CB approved
UL approved
EN 61000-3-2 (harmonic current)
EN 55022 class B (EMC)
EN55032 (CISPR32) class B
EN61000-3-2,-3
GB9254 class B
GB17625.1
EN55024
EN61000-6-1
Criteria A
RSP-1000 Series specification sheetDeclaration Of Conformity| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
