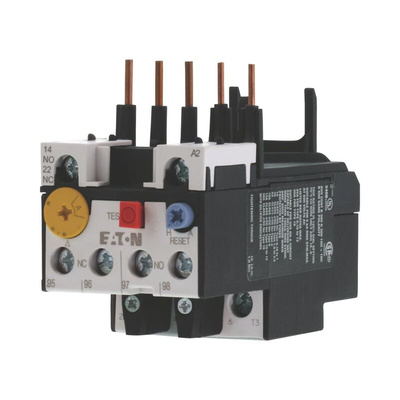

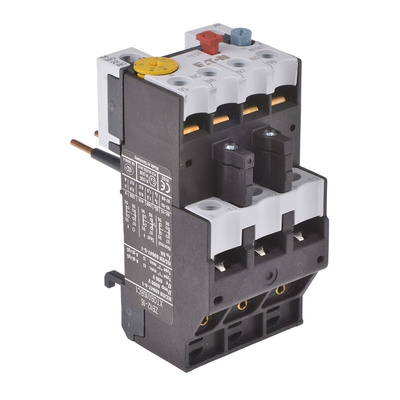

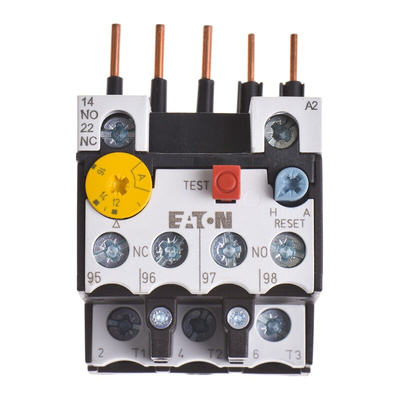

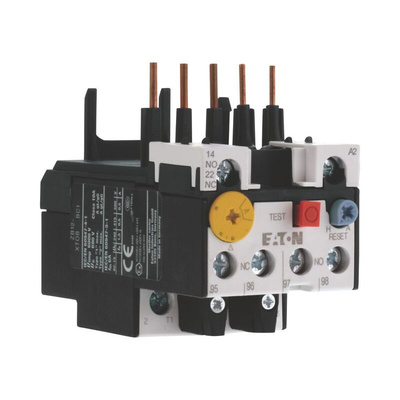

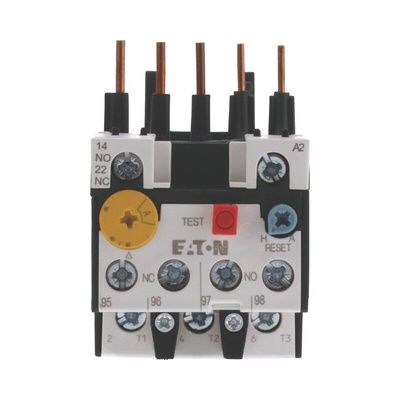

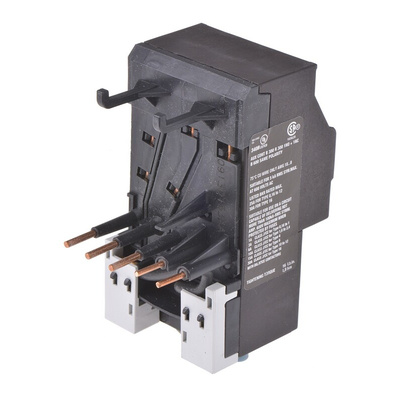

290168 ZB12-16, Eaton ZB Overload Relay 1NO + 1NC, 12 → 16 A F.L.C, 16 A Contact Rating, 6 W, 500 Vac, Реле

Eaton ZB Series Overload Relay, 16A Contact Current, 2 Auxiliary Contacts - 290168 ZB12-16

This Eaton overload relay, with a contact current rating of 16A and designed as part of the ZB Series, is a crucial component for automation, electronics, electrical, and mechanical industries. The relay ensures efficient control voltage at 500 Vac, with a powerful FLC motor rating of 12-16A. Its automatic reset feature and screw terminal design make it a reliable solution for various applications.

Features & Benefits

• Designed for contact current rating of 16A, ensuring safe and reliable operation
• Contact voltage rating of 690V AC for high-voltage applications
• Direct contactor mounting style for easy installation and maintenance
• Screw terminal type for secure and stable connections
• Motor rating of 12-16A for powerful performance
• Automatic reset method for convenience and efficiency
• High power rating of 6W for increased operational capacity

Applications

• Ideal for use in automation systems to regulate current and voltage
• Suitable for electronic control circuits requiring a contactor with 16A current rating
• Used in electrical panels to ensure safe and efficient operation
• Perfect for mechanical systems requiring reliable overload protection

Can it be used in high-voltage applications?

Yes, the Eaton overload relay is suitable for applications with a contact voltage rating of up to 690V AC.

Will it reset automatically after overloading?

Yes, the relay features an automatic reset method for convenience and efficiency.

Short Form Catalogue

ZB12-16 Overload Relay Data Sheet

Manual - Motor-Protective Relays

Instruction Sheet - ZB12/ZB32 Series
