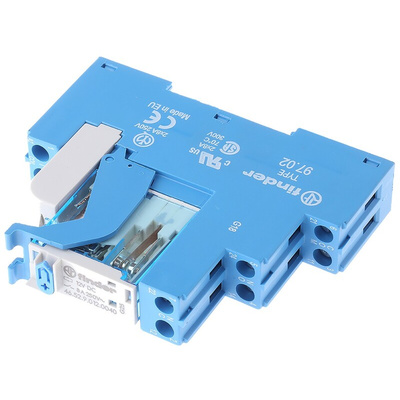

4C.02.9.012.0050SPA, Finder 4C Series Interface Relay, DIN Rail Mount, 12V dc Coil, DPDT, 2-Pole, Реле

Finder Interface Relay Module

The Finder interface relay module is an innovative, ultra-compact electromechanical device equipped with a 12VDC coil and a DPDT 2 C/O contact configuration. This narrow design interface relay works as a coupling element used to send control signals to and from a PLC. The high number of approvals make it useful for many applications around the world. It offers a high-density solution for smaller electrical cabinets and other industrial applications thus, optimising your panel installation. This solid-state relay module has a small footprint that makes it ideal for applications where space-saving is essential.

Features and Benefits

The contact rated voltage is 250VAC and switching current of 8A
Instant ejection of relay using plastic retaining clip
Supply status indication and EMC coil suppression module
Operating temperature ranges from -40°C to 70°C
AgNi contact
Screw type terminal connection
DIN rail type mounting

Applications

Escalators
Road / tunnel lighting
Hoists and cranes
Carousel warehouses
Control panels
Panels for electrical distribution
Industrial process control
Motor control applications
Electrical isolation
Signal matching between electronic controls

Certifications

IP20 rated
UL approved
CE certified
VDE certified
CSA certified
EAC certified
cRUus certified
