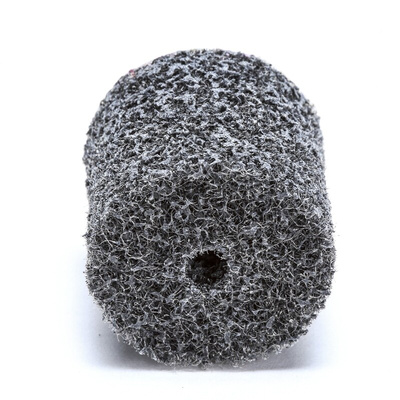

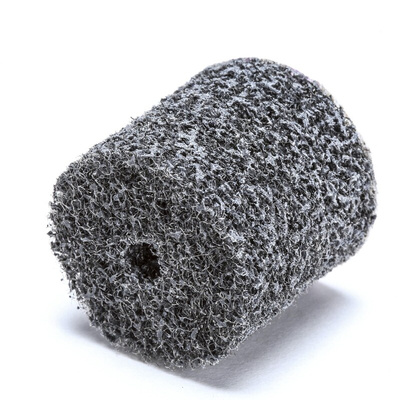

XL-UW 03792, 3M Scotch-Brite EXL Silicon Carbide Grinding Wheel, 25mm Diameter, Very Fine, Шлифовальный круг

3M XL-UW silicon carbide grinding wheels

Scotch-Brite™ compressed finishing discs with silicon carbide grit for staging and polishing on all metals (including stainless steel and special steels). Scotch-Brite™ EXL Unitized Wheels feature a soft, conformable consistency that effectively smooths, deburrs and finishes the edges of metal alloys, as well as many plastics and composites. There are a variety of densities and grades starting from a very soft 2 density for applications requiring conformability to a hard, aggressive 8 density for maximum cut and durability.

Features and Benefits

• Wheel edge can be dressed for effective deburring, finishing and polishing of all metal alloys and many plastics and composites
• Tough, layered, unitized construction can operate clockwise or counterclockwise directions
• Conformability allows abrasive to stay in contact with complex-shaped parts in robotic processing
• Densities and grades ranging from soft and conformable to hard and aggressive offer utility for a wide variety of applications
• Resists smearing for cleaner surfaces and less preparation
• Minimizes heat build-up to lessen impact on heat-sensitive materials

Applications

With a wide range of conformability options and high consistency, long-lasting Scotch-Brite™ industrial abrasives are a great option for robotic deburring. Scotch-Brite™ EXL Unitized Wheel quickly removes burrs and sharp edges in end-of-arm tooling operations, delivering consistent performance through the full life of the abrasive.

Available in this range:

• 154-435 is a 25mm grinding wheel with very fine grade and 6mm bore size
• 154-249 is a 25mm grinding wheel with very fine grade and 5mm bore size
• 154-457 is a 75mm grinding wheel with very fine grade and 6mm bore size
• 154-463 is a 150mm grinding wheel with very fine grade and 13mm bore size

Why choose 3M?

3M is a leading innovator of abrasive technologies, constantly evolving to provide ideal solutions to industrial and commercial applications. With 3M you can be assured of a wide selection of quality products.

Scotch-Brite EXL Unitised Wheel XL-UW Data Sheet
