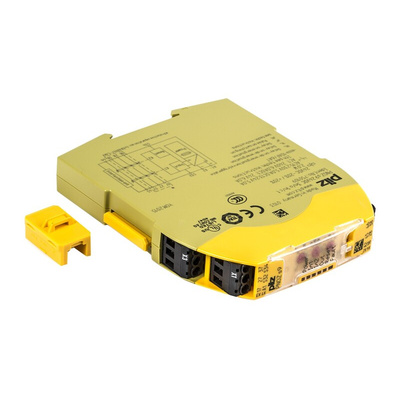

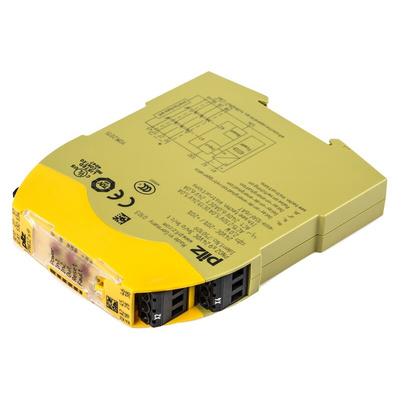

750109, Pilz PNOZsigma Series Output Module, 0 Inputs, 4 Outputs, 24 V dc, 3NO/1NC, Модуль

PNOZsigma series contact extension blocks

Extension modules for PNOZ sigma series safety blocks.
The extension blocks provide reinforcement and increase the number of safety contacts on a base device.
The contact extension block expands an existing electrical circuit. Safety is still guaranteed, even if a component fails.
Removable terminals with connection via spring terminals.
DIN rail mounting.

Standards

EN 60947-5-1, EN 60204-1 VDE 0113-1

Pilz Expansion Module

The Pilz PNOZsigma series expansion module has 3 instantaneous contacts(NO) and 1 auxiliary contact(NC) relay output. It has a 24VDC supply voltage. It has a power rating of 2W and is available in a screw terminal type.

Features and Benefits

DIN rail mounting
The extension blocks provide reinforcement and increase the number of safety contacts on a base device
The contact extension block expands an existing electrical circuit. Safety is still guaranteed, even if a component fails
Removable terminals with connection via spring terminals
Operating temperature ranges between -10°C and 55°C

Certifications

EN60204-1
EN62061
EN954-1
VDE0113-1
CSA certified
UL listed
TUV certified
CCC certified
