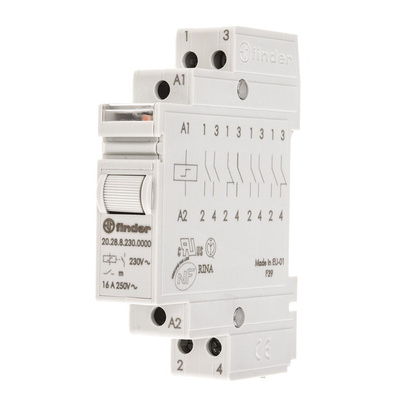

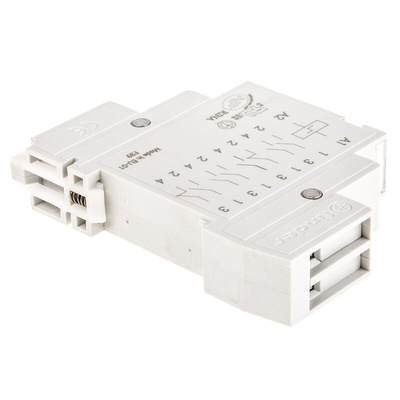

20.28.8.230.0000, Finder DPST DIN Rail Latching Relay - 16 A, 230V ac, Реле

0159767
Номер производителя: 20.28.8.230.0000Производитель: Finder
Цена за шт.
7506.00 руб. (С НДС) *
Количество 5+ 10+
Цена 7200.00 руб. 7041.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

16A Step Relays - 20 Series

The 20 Series are available as DPST-NO or SPST-NO + SPST-NC step relays. On, each successive energisation of the relay coil the contacts change state thus providing a step or "flip flop" sequence of operation. With the advantage of an override test button, it allows manual advancement of the step sequence and individual mechanical flags provides visual indication of contact status. Typical applications include the control of lighting where push on push off or sequential operation is required, automatic opening/closing of doors, gates, and so on. Use in portable or battery powered equipment requiring contact status to be maintained without continuous supply to the coil and functions where manual override operation is desired

17.5 mm wide (EN 50022) 35mm DIN Rail mount housing
Manual test button and mechanical indicators
Minimum impulse duration: 0.1 Sec
Maximum impulse duration: 1 hour
Insulation between coil and contacts (1.2/50μ); 4 kV
Nominal lamp rating: incandescent (230 V ac); 2000 W
Compensated fluorescent (230 V ac); 750 W
Temperature range: -40 to +40°C
Protection category: IP20

Approvals

UL recognised components for Canada & US; LROS

Техническая спецификация
pdfLloyd’s Register of Shipping
pdfRINA Certificate
pdfDatasheet
Глубина:
58.4мм
Диапазон рабочих температур:
-40 → +40°C
Катушка напряжение:
230В перем. тока
Коммутируемый ток:
16 A
Конфигурация контактов:
DPST
Максимальная коммутируемая мощность переменного тока:
4 кВA
Материал контактов:
Серебряный сплав
Особенности:
Mechanical Flag Indicator, Test Button
Рабочая температура - максимальная:
+40°C
Рабочая температура - минимальная:
-40°C
Серия:
20
Сопротивление катушки:
2.5 кОм
Тип клеммы:
Винт
Тип монтажа:
DIN Rail
